TSC TTP-345 Series
Industry-leading Performance At A Budget Price
The new TTP-247 thermal transfer desktop barcode printer series delivers more performance for the price than any other printer in its class. Based on the design of its best-selling predecessor, the TTP-245 Plus, the TTP-247 runs at an impressive 7 inches per second, printing up to 4 inches wide at 203 dpi resolution. A second model in the series - the TTP-345 - offers high resolution 300 dpi printing at 5 inches per second. Both models offer 8 MB of SDRAM and 4 MB of onboard Flash memory. Gigabytes of Flash memory can be added via an onboard SDHC card reader.
TTP-247 series offers USB 2.0, parallel and serial connectivity, plus an optional Ethernet port for networking. It also incorporates the TSPL-EZ printer-control language, which is fully compatible with other TSC printer languages, while supporting TPLE (Translation Printer Language Eltron®) and TPLZ (Translation Printer Language Zebra®). The languages automatically decipher and translate the format of each label as it is sent to the printer. TSPL-EZ also features internal scalable True Type fonts (based on the Monotype® font engine), which are typically found only in more expensive printers.
Like its predecessor, the TTP-247 series features a user-friendly clamshell design for easy drop-in media loading, along with a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its innovative two-motor gear-driven engine is powerful enough to handle a 300-meter-long ribbon and label rolls up to 8.4 inches in diameter.
By using two motors instead of the usual one, TTP-247 series printers operate at lower torque, reducing noise, decreasing wear and tear, and extending printer life. The platform's user-friendly design makes it easy for operators to load and unload ribbons, and its 300-meter capacity is more than four times the industry-standard length for desktop printers.

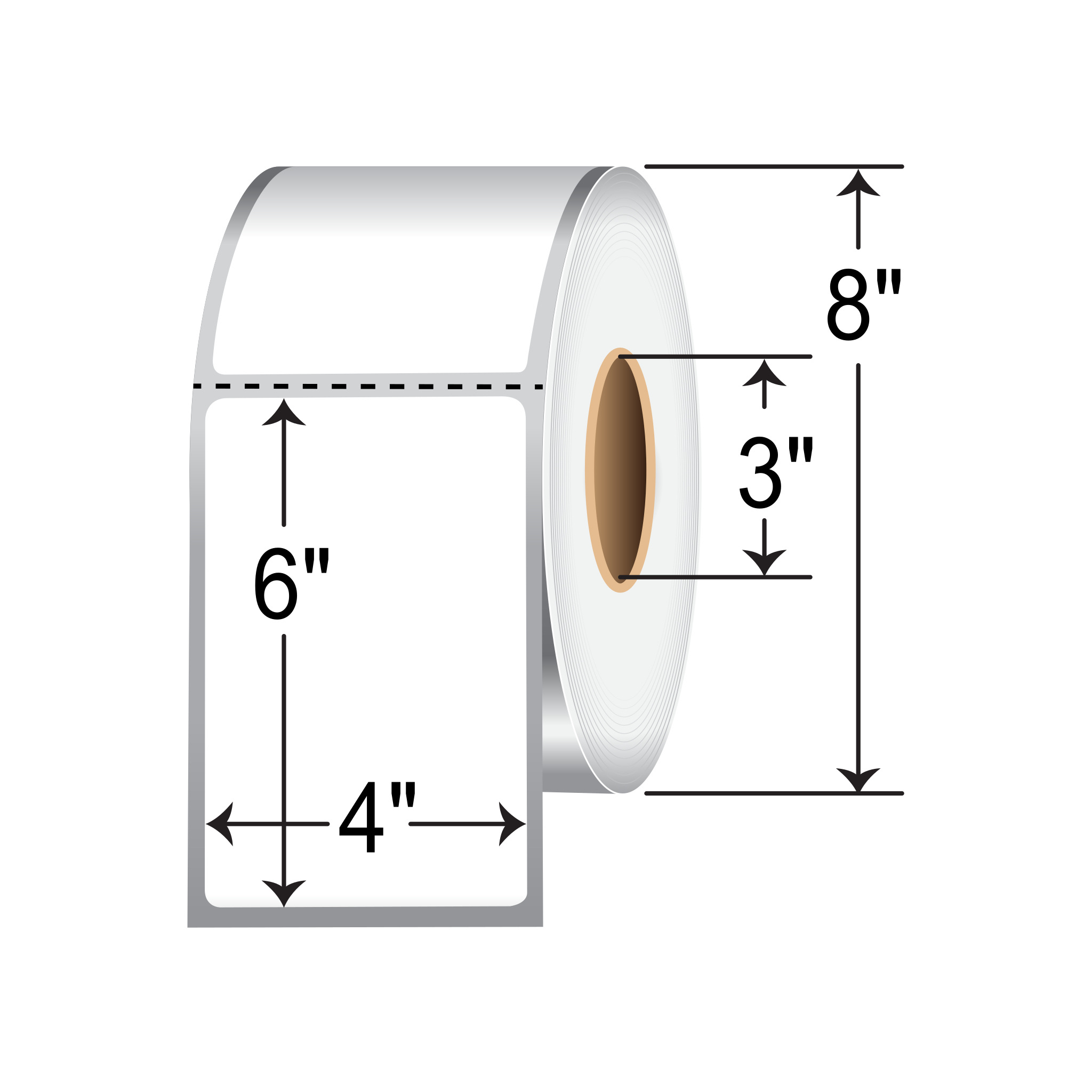

The TTP-247 series holds up to a 5-inch OD roll on a 1-inch core and, using an optional external media hanger, can accommodate a full 8.4-inch OD label roll on a 3-inch core. With its many performance features and budget-friendly price, the TTP-247 series is by far one of the most attractive thermal transfer barcode printers on the market.
Key Features
-
Up to 177.8 mm (7") per sec. print speed
-
4 MB Flash memory and 8 MB SDRAM memory
-
SD Flash memory expansion up to 4 GB
-
User-friendly clamshell design
-
Label gap sensor & full-range adjustable black mark sensor
-
Parallel, serial & USB 2.0 interfaces
-
Main board integrated with internal Ethernet (factory option)
-
Label capacity up to 214 mm OD (8.4" OD)
-
Ribbon capacity up to 300 m (984')
-
TSPL-EZ firmware for plug-n-play ease
-
Optional peel-off module, cutter module, stand-alone keyboard and scanner
Applications
-
Business/ office
-
Product marking
-
Compliance labeling
-
Asset tracking
-
Document management
-
Shelf-labeling
-
Shipping/ receiving
-
Specimen labeling
-
Inventory control
-
Patient tracking
![TSC TTP-345 TT Printer [300dpi, Ethernet] 99-127A027-4061](https://www.barcodefactory.com/images/category/large/90892.png "TSC TTP-345 TT Printer [300dpi, Ethernet]")
Thermal Transfer and
Direct Thermal
Spec. Sheet
