Cab A8 Plus TT Printer [300dpi, Ethernet]

CAB A8+ Label Printer

They fit with a wide range of applications. They have been developed with focus on easy and convenient operation and high reliability.

The print mechanics and the chassis are made of high-quality materials and perfectly match in terms of shape and function.

A large number of peripherals and software enable customer-specific solutions. Whether they are operated in stand-alone mode, in a PC application or within a network – the rugged A8+ printers are always up to the mark.

A2+, A4+, A6+ have been discontinued. Please refer to follow-up models SQUIX 2, SQUIX 4, SQUIX 6.

The extra-wide one

or pallet and drum labels up to a width of A4

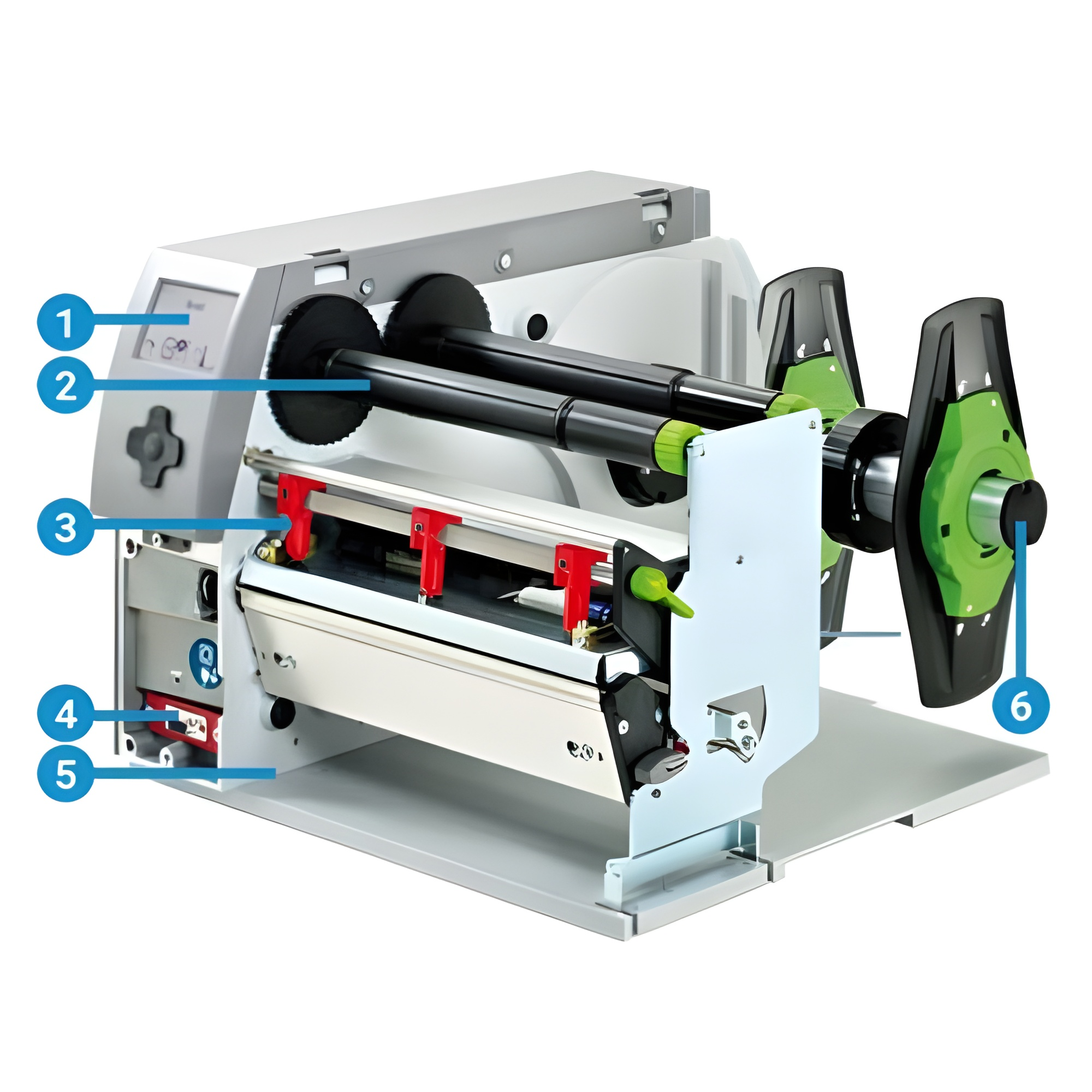

Details CAB A8+ Label Printer

1. Large graphic display. White backlight provides good readability.

2. Ribbon holder. The three-part tightening axles enable the ribbon to be quickly and easily exchanged.

3. Simple adjustment. The print head is pressed on by three plungers: One is fixed at the inner side, another is set in centered position and the third is set at the outer label margin.

4. Periphery connection. Additional modules are quick and easy to connect. All peripheral devices are plugged to the printer with the help of two pins and are fixed with a screw.

5. Rugged metal chassis. Made of cast aluminum. Basis to assemble all the units

6. Roll holder. Picking up core diameters of at least 38 mm (76 mm adapters for a better label winding are included in the delivery). The spring-mounted margin stop with a screw cap enables constant tension during material feed and therefore improves the accuracy of the imprint.
