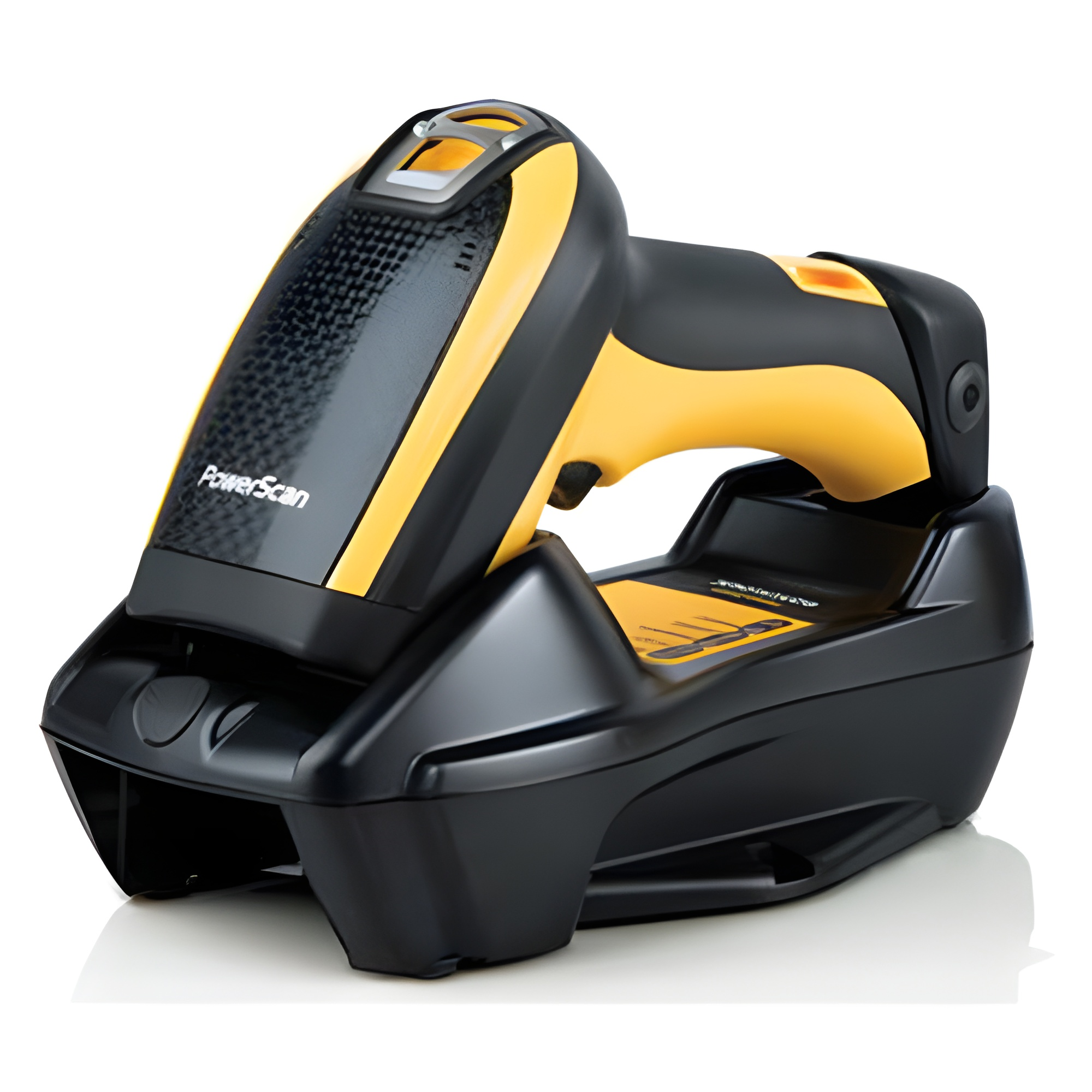

Datalogic PowerScan PM9501 Auto Range Scanner

SKU: PM9501-AR910RBK20
|
Weight: 0.75 lbs.
Connectivity Cordless
Scanner Type 2D Area Imager
Form Factor Handheld
Scanner Includes Cordless Kit [Cable,Cradle]
Scan Pattern Area
Scan Range Near/Far
Interface Serial USB Keyboard Wedge RF Wireless USB-A
Durability Rugged

Product Highlights

Handheld Area Imager Scanner, Cordless, Auto Range, PowerScan PM9501, Datalogic, 910 MHz, RS-232 Kit, Includes: Removable Battery, Base Station, US Power Brick, US Power Cord, USB Cable

2D Barcodes
1D Barcodes
Spec. Sheet

Datalogic PowerScan PM9501-AR

Auto Range Model w/ Extra-Long Range Capabilities

The PowerScan PM9000 series includes different models able to satisfy all customers’ needs; the PM9501-AR is the 1D/2D Auto Range model with extra-long range capabilities. The PM9501-DAR is the intermediate model and includes a display and 4-key keypad. The ultimate PM9501-DKARmodel features a display with a full 16-key keyboard. The PM9501-DKARmodel significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal. The BC9180 base includes one model with two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such asEthernet IP and Modbus.

Datalogic’s Star Cordless System

Narrow band radio communications with Datalogic’s STAR Cordless System 2.0 provides the key to increased productivity and flexibility in the workplace. It offers scalable solutions from simple point-to-point applications to networking capabilities combined with seamless roaming for complex installations.

Good-Read Feedback and Superior Reading Performance

The PM9501-AR readers feature Datalogic’s exclusive 3 Green Lights(3GL) for superior good-read feedback. The patented ‘Green Spot’ directly on the code and dual Good Read LEDs on the top and back of the cap add increased visibility at any angle.

The PowerScan PM9501 Auto Range can read 1D/2D barcodes with an extended reading range. Its powerful auto focus system allows the scanner to read from a short distance of 15 cm / 6 in to a distance of more than 20 m /65 ft because of a fast focus adjustment, allowing the operator to easily read a close up barcode and then focus at the top of a warehouse rack.

Features

  • Optics: Auto Range: > 20 m / 65 ft
  • Fast Autofocus system, reads up to 3 mils
  • Available in 3 models:
    • Basic
    • With Display and 4-Key Keypad
    • With Display and Full Alphanumeric Keypad
  • Radio frequencies available in 433 or 910 MHz
  • Point-to-point and multi-point transmission
  • Seamless roaming• Ethernet Connectivity (Standard and Industrial)
  • Datalogic 3GL and loud beeper for good-read feedback
  • User replaceable Lithium-Ion battery
  • Operates over a wide range of temperatures
  • Water and Particulate Sealing Rating: IP65
  • Drop resistance to 2.0 m / 6.5 ft
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
