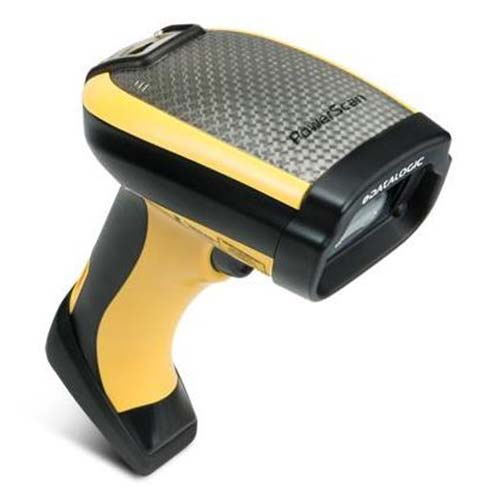

Datalogic Powerscan PD9531-DPM Scanner

SKU: PD9531-DPMK1
|
Weight: 1.4 lbs.

Connectivity Corded
Scanner Type DPM
Form Factor Handheld
Scanner Includes Corded Kit [Cable]
Scan Pattern Area
Scan Range Standard
Interface USB USB-A
Durability Ultra-Rugged

Product Highlights

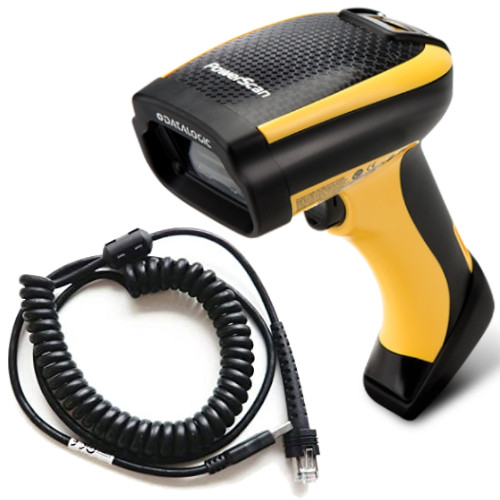

Datalogic Adc, Powerscan PD9531, Direct Part Mark, USB Kit (Kit Included PD9531-DPM & CAB-524)
DPM
Direct Part Marking

Frequently Bought Together

Datalogic PowerScan PD9530-DPM

Overview

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.

The PowerScan PD9530-DPM Evo reader is a rugged handheld area imager specifically addressed and capable of reading codes marked with DPM.

The PowerScan PD9530-DPM Evo imager includes the latest optics and software from Datalogic to make the reading of codes with DPM easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.

The intuitive aiming system allows the highest first-pass reading rate. Additionally, the PowerScan 9530-DPM Evo area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users' eyes.

Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.

Features and Benefits

  • Enhanced Decoding software will support any kind of Direct Part Marking (DPM) technology.
  • Snappy omnidirectional reading from contact to over 1.0 m / 3.3 ft.
  • Highly visible 4-dot aimer with center cross for targeted scanning.
  • New 'soft-pulsed white' illumination light.
  • Datalogic's 3GL (3 Green Lights) technology and loud beeper for good read feedback.
  • Ergonomic shape provides hours of tireless data collection for the user.
  • Supports 1D, stacked and 2D codes, postal codes and image capture.
  • Water and Particulate Sealing Rating: IP65.
MSRP: $1628.00
$888.45
