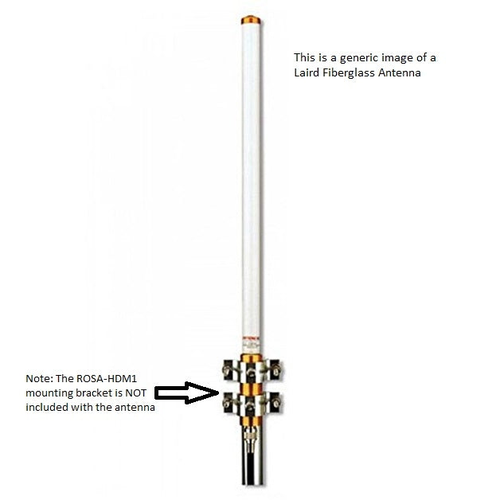

Laird FG1520 Outdoor Fiberglass Omni base Station Antenna
| Part Type | Antenna |
| Interface | Coaxial |
| Environment | Indoor/Outdoor |
| Gain | 2.15 dBi |
Product Highlights
Laird FG1520, 152-156 MHz, Unity/ 2.15 dBi Outdoor Fiberglass Omni base Station Antenna with N-Female Connector MNF# FG1520This antenna Does Not ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket. Contact us for to discuss your project.
Laird Omnidirectional Basestation Antennas
Laird Omnidirectional base station antennas are collinear designs enclosed in a high density fiberglass, which is covered with a protective ultraviolet inhibiting coating. The radiating elements are made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a "cold" sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.
The FG1520 from Laird (formerly Antenex) is a heavy duty, omni-directional fiberglass base station antenna operating at 152-156 MHz, providing Unity/ 2.15 dBi of linear gain. *Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*
Specifications
| SKU | FG1520 |
|---|---|
| Manufacturer Part Number | FG1520 |
| Manufacturer | Laird |
| Antenna Category | VHF (132-220 MHz) |
| Working Frequency | 152-156 MHz |
| Gain | Unity/ 2.15 dBi |
| Center Tuned Frequency 1 | 154 MHz |
| Antenna Style | Omnidirectional Basestation Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 68 |
| Height/Length (mm) | 1727.2 |
| Thickness/Diameter (inches) | 1.31 |
| Thickness/Diameter (mm) | 33.27 |
| Weight (lbs) | 6 |
| Weight (grams) | 2721.55 |
| Material | Fiberglass |
| Operating Temp (celsius) | (-40) to 85 C |
| Color | White |
| Connector 1 | N-Female |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
Laird – Antenex Outdoor Rated Omnidirectional Fiberglass Base Station Antennas Are Designed To Perform For Many Years Under Extreme Conditions. Every Antenna Is Covered By A Five-Year Factory Warranty.
*Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*
The FG1520 from Laird (formerly Antenex) is a heavy duty, omni-directional fiberglass base station antenna. It has a collinear design enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.
The radiating elements are tuned for the 152-156 MHz and made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.
FEATURES AND BENEFITS:
- Frequency: 152-156 MHz
- Gain: Unity/ 2.15 dBi
- Length: 68 inches
- 100% tested on a network analyzer before shipping to assure the best performance.
- Special UV Treated - stands up to the sun over years of service.
- Durable gold anodized sleeve and cap with N Female connector.
- Five Year Factory Warranty.
