Laird Near Field RFID Antenna 865-928 MHz
| Environment | Indoor |
| Gain | 6 dBi |
| Polarization | Left Circular |
| Read Range | Near Field |
| RFID Frequency | UHF |
Product Highlights

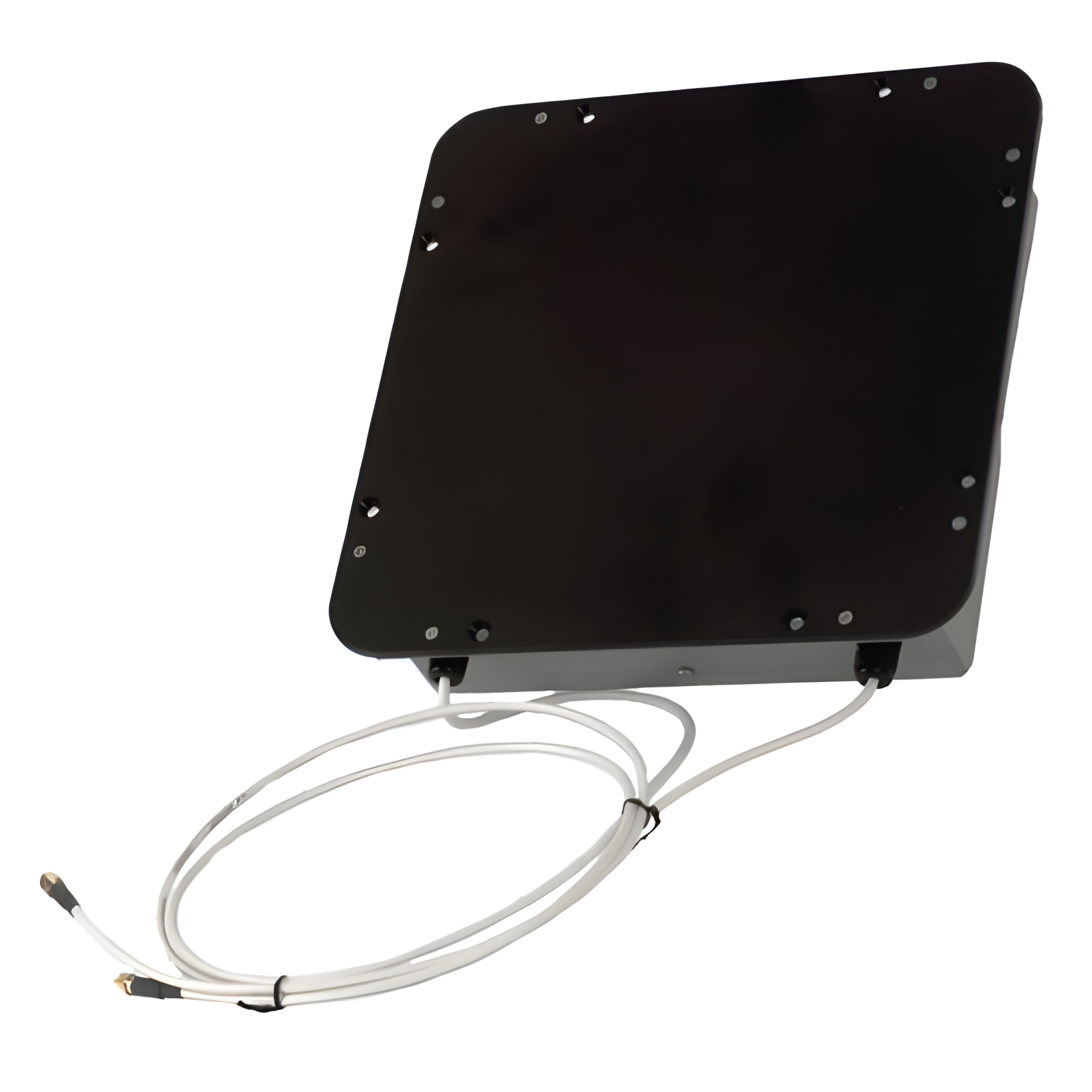

Laird PNL90206BC-183SMAM: Laird Near Field RFID Antenna 865-928 MHz with SMA Male Connector MNF# PNL90206BC183SMAM
Spec. Sheet
Laird RFID Antennas
Laird RFID antennas offer high-performance solutions for RFID applications. With advanced technology and design, they ensure reliable data capture and transmission, enabling seamless integration into various systems. From industrial to retail settings, Laird antennas optimize RFID performance, enhancing efficiency and accuracy in inventory management and asset tracking. Use our Free online Chat or simply Call to speak with a RFID expert.
PNL90206BC183SMAM is a Laird RFID UHF near field antenna operating with a choice of 865-870 MHz or 902-928 MHz frequency range and an SMA Male connector. This antenna is designed with both dual and single port configurations. The dual port configuration provides polarization diversity which is ideal for multi-port readers. The single port configuration provides a circular polarization that can be used for both single and multi-port readers. They are typically used in industrial plants, hospitals, and pharmacies.
Specifications
| SKU | PNL90206BC183SMAM |
|---|---|
| Manufacturer Part Number | PNL90206BC-183SMAM |
| Manufacturer | Laird |
| Antenna Category | RFID (865-928 MHz) |
| Polarity | Dual Polarity |
| Gain | 6 dBi |
| Connector Type | Cable - Bottom Entry |
| Connector 1 | SMA-Male |
| Cable Length (inches) | 72 |
| Cable Length (mm) | 283 |
| Height/Length (inches) | 10.2 |
| Height/Length (mm) | 261 |
| Thickness/Diameter (inches) | 2.6 |
| Thickness/Diameter (mm) | 65.9 |
| Width (inches) | 10.2 |
| Width (mm) | 261 |
| Weight (lbs) | 3 |
| Weight (grams) | 1400 |
| Mount Style | On top of flat surface, underneath flat surface, or in cut-out hole |
| Product Condition | New |
