MTI MT-120018/A Heavy Duty Antenna Mount

MTI MT-120018/A Heavy Duty Antenna Mount

SKU: MT-120018-A
|
Weight: 1 lbs.

Part Type Mounts

Product Highlights

MTI MT-120018/A Heavy Duty Antenna Mount for 7x7 inch MTI Antennas MNF# MT120018A, MT-120018/A

MTI Wireless Edge - Innovative Antennas Developer

MTI Wireless Edge develops and manufactures high quality antennas for 5G Backhaul, Commercial, Military and RFID markets. Focused on the future, MTI Wireless Edge antennas developer and manufacturer, is a part of the MTI Group, and is always at the forefront of innovation, developing groundbreaking technologies, frequencies, and innovative antennas.

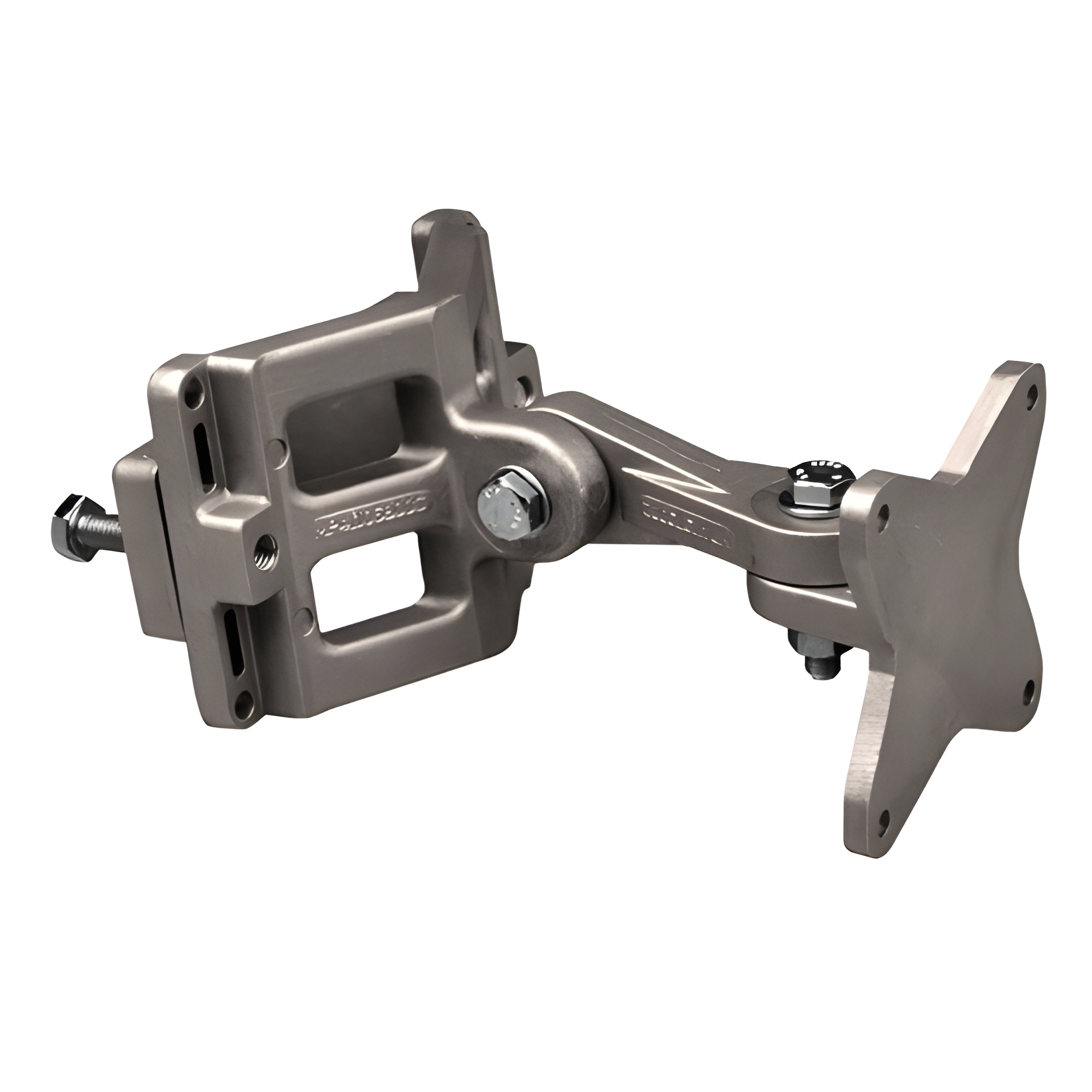

The MTI MT-120018/A is a heavy duty, die-cast mounting kit that will allow you to mount smaller antennas with 66 mm bolt patterns to a wall or mast. Specifically to MTI, this mount is designed to mate with most of their smaller (7 x7") panel antennas, including: MT-262024 & MT-262013. In addition, this mounting kit can be used to mount ANY device that utilizes a 66 mm bolt pattern.


Specifications

SKU MT120018A
Manufacturer Part Number MT-120018/A
Manufacturer MTI
Bands Single
IP Rating IP67
Height/Length (mm) 114
Thickness/Diameter (mm) 76
Width (mm) 89
Material Aluminum
Mount Style Mast or Wall
Product Condition New
$34.00
