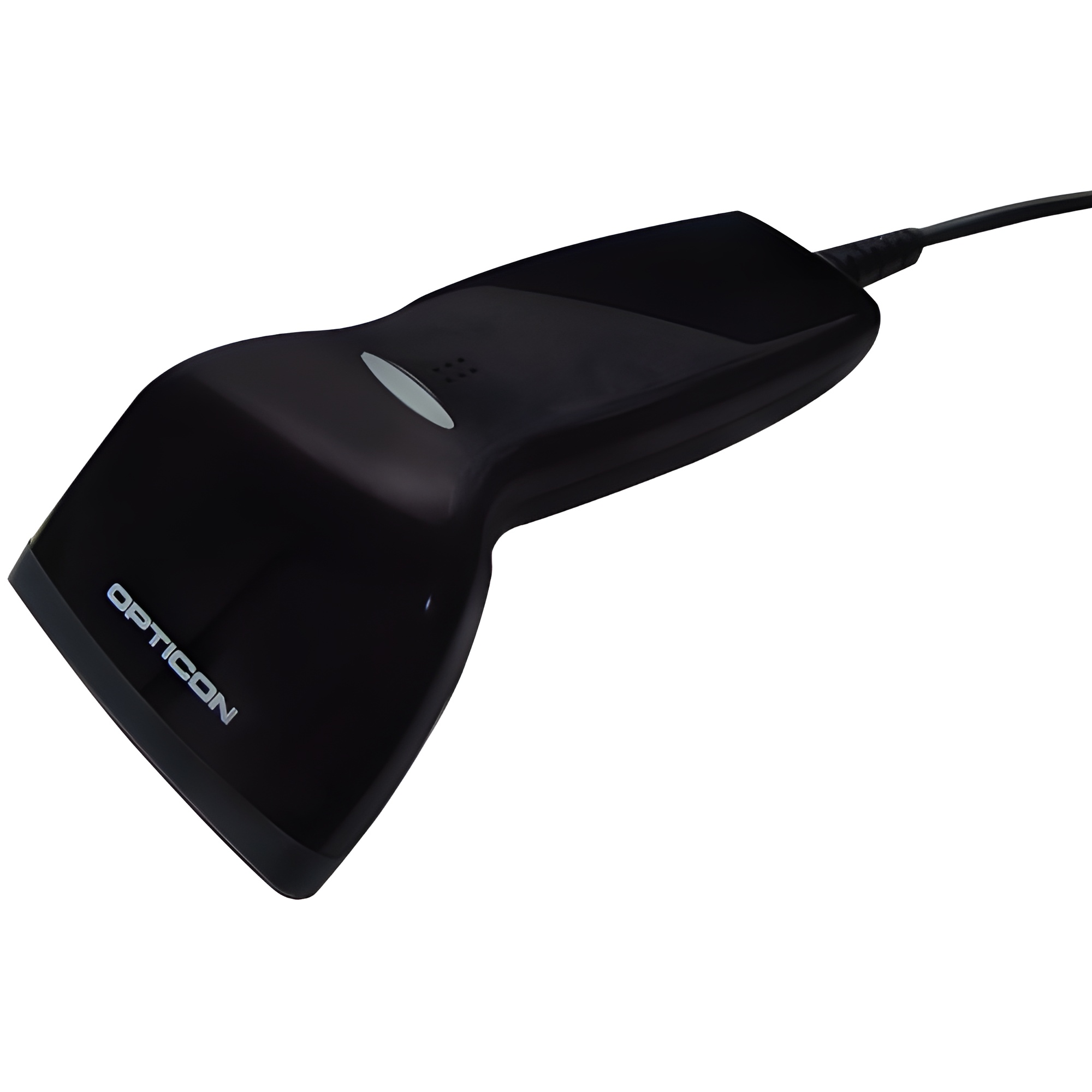

Opticon C37 Scanner

Opticon C37

Operating Indicators

Visual: 1 LED (Red/Green/Orange) Non-Visual: Buzzer

Operating Keys

Entry Options: 1 Scan Key

Communication

RS232: DB9 PTF Connector With External Power Supply Keyboard Wedge

MINIDIN6 F/M Connector USB: Version 1.1, HID/V CP , USB- A connector

Power

Voltage Requirement: 5V ± 10% (Kyboard Wedge and USB), 6V Minimum

4.5, Max. 6.6V RS232

Barcode Scanner Optics

Light Sorce: 630 NM Red LED Scan Method: CCD Linear Sensor 2500 Pixels Scan Rate: 200 Scans/SEC Trigger Mode: Manual, Auto-Trigger Reading Pitch Angle: -30 to 0°, 0 to +30° Reading Skew Angle: -70 to -20°, 20 to +70° Reading Tilt Angle: -25 to 0°, 0 to +25° Curvature: r>15 mm (EAN8), r>20 mm (EAN13) Minimum ResolutiOn at PCS 0.9: 0.125 mm / 5 mil Depth of Field: at PCS 0.9, Code 39 0 - 15 mm / 0 - 0.59 in

Supported Symbologies

Barcode (1D): JAN/UPC/EAN Includes Add-on, CODABAR/NW-7, CODE 11, CODE 39, CODE 93, CODE 128, GS1-128 (EAN-128), GS1 DATABAR (RSS), iata , Industrial 2 of 5, Interleaved 2 of 5, ISBN-ISSM-ISSN, Matrix 2 of 5, MSI/PLESSEY, S-Code, Telepen, Tri-optic, UK/PLESSEY Postal Code: Chinese Post, Korean Postal Authority Code Durability Temperature in Operation: 0 to 50 °c / 32 to 122 °F temperature in Storage: -20 to 60 °c / -14 to 140 °F Humidity in Operation: 5 - 95% (Non-Condensing) Humidity in Storage: 5 - 95% (Non-Condensing) Amnient Light Immunity: Fluoresecent 10,000 lx Max, Incandescent 10,000 lx Max Drop Test: 1.5 m / 5 ft Drop Onto Concrete Surface VibratiOn Test: 10 - 100 HZ with 2g for 1 Hour Protection Rate: IP42

pHysicaL

dimensiOns (W x H x d): 53 x 75 x 150 mm / 2.09 x 2.95 x 5.91 in WeigHt BOdy: ca. 90 g / 3.2 oz (excl. cable) c ase: aBs, Black, White

reguLatOry & saFety

pr Oduct cOmpLiance: ce , F cc , V cci, r oHs encLOsed items pOWer suppL y: 100-240V/0.5a , 50/60 Hz, 6V/2a (for rs232)

mOdeLs

interF ace VersiOns: rs232, k eyboard Wedge, usB cOLOr VersiOns:
