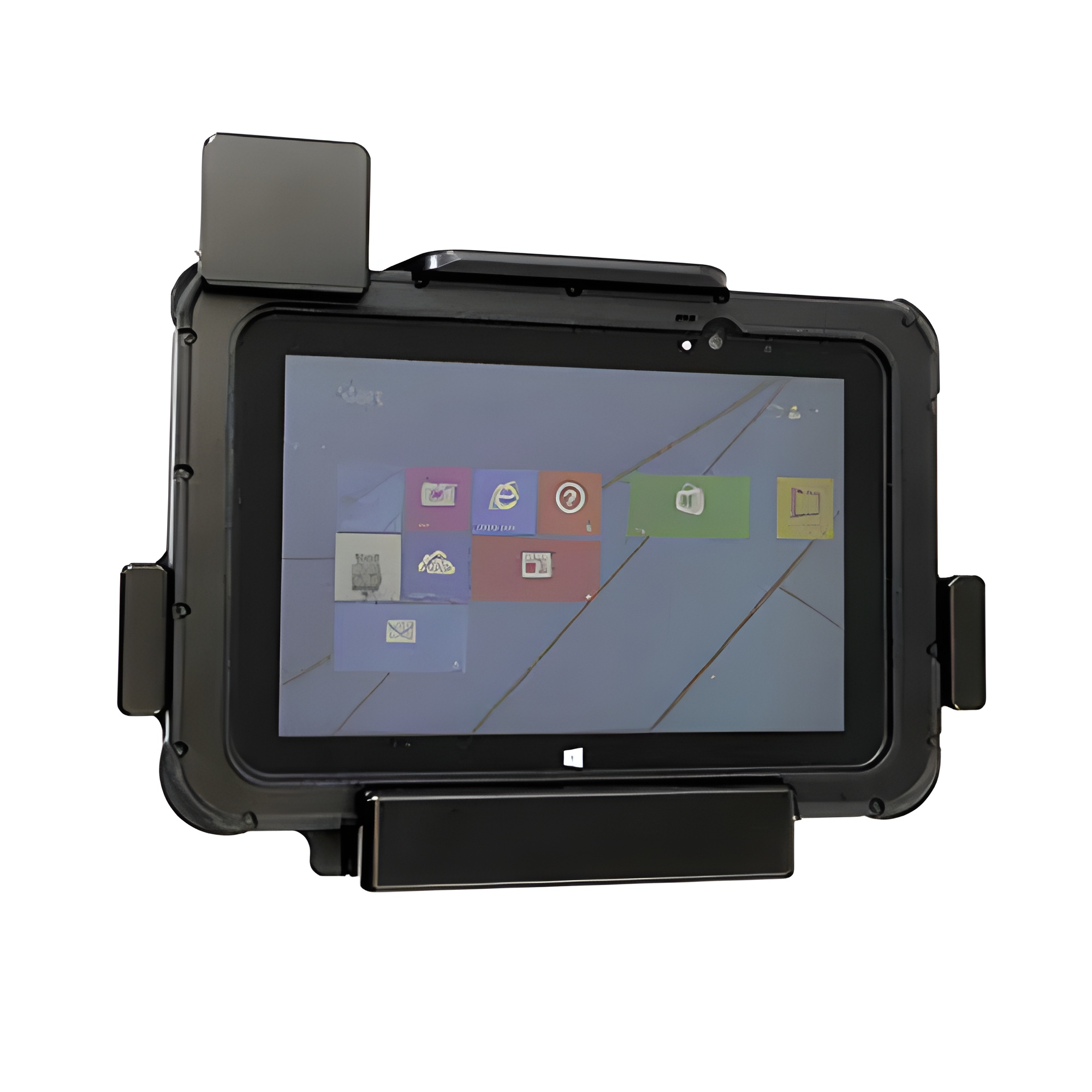

ProClip Mount for Zebra ET5X 8.3 Inch Non-Charging Cradle with Spring Lock

ProClip Mount for Zebra ET5X 8.3 Inch Non-Charging Cradle with Spring Lock

This cradle is custom fit to the Zebra ET50 series of tablets in the 8.3" and 8.4" size with the Rugged Frame.

The cradle is designed to fit all of the configurations of ET50 Expansion Back accessories in one solution. Regardless of having just the tablet in the frame, or any combination of the Expansion Back, Barcode Scanner, Hand Strap or Spare Battery, your specific combination will will fit in this cradle.

The scanner can function through the scan window on the top of the cradle while docked and locked in place. This cradle features a slot for the Hot-Swap battery so it can be changed while docked.

The included Spring Lock block provides some additional security for holding the tablet in place in environments that have excessive vibration.

This cradle features a steel base plate that has the AMPS and 75mm VESA hole patterns for easy attachment to vehicles, work carts or flat surfaces. It also has additional holes to enable cables to be managed with the in

Features

• Fits the Zebra ET5x 8.3" and 8.4" Tablet in the Rugged Frame with the 30-Pin Connector Installed
• Fits Expansion Back with Barcode Scanner
• Scanner Accessible while Docked
• Hot-Swap Battery Access While Docked
• Includes Spring Lock
• Steel Base Plate with with AMPS and VESA 75MM Mounting Holes and Cable Tie Holes
• Durable Side Supports and Docking Base made from Acetal Plastic
• ABS Backplate and Top Arm are Flexible and Durable
• Recommended with ProClip Standard Duty Mounts with a Back Plate for vehicles or Heavy-Duty Mounts for Forklifts.
• M4 Fastener Pack (10, 14 and 20 mm Low Profile 2.5 mm Hex, M4 Lock Nuts)
