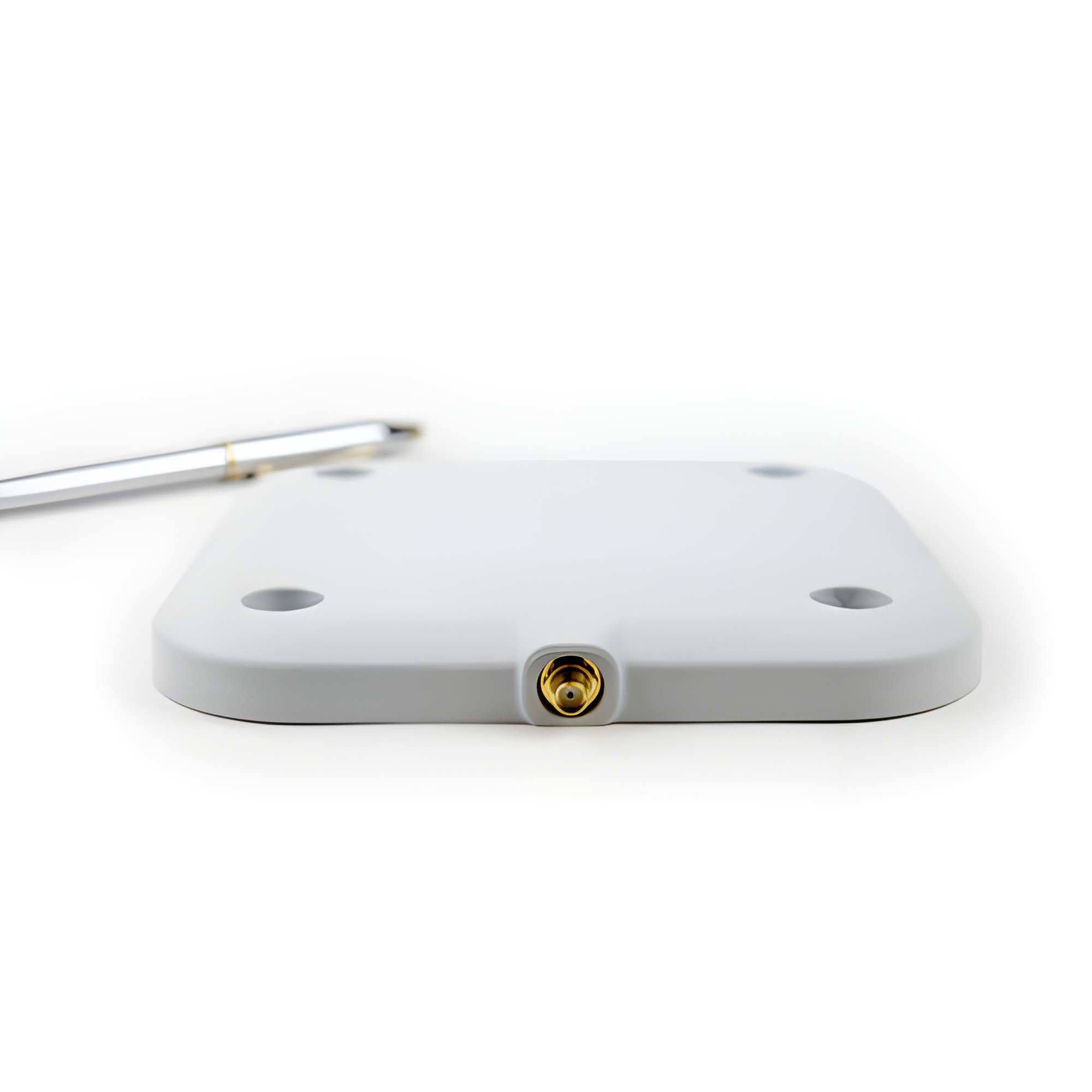

RFMAX R8655 SlimLine Circular Polarized UHF RFID Antenna R8655-LPF-SSF
RFMAX R8655 SlimLine Circular Polarized UHF RFID Antenna R8655-LPF-SSF
RFMAX R8655 SlimLine Circular Polarized UHF RFID Antenna R8655-LPF-SSF
RFMAX R8655 SlimLine Circular Polarized UHF RFID Antenna R8655-LPF-SSF
RFMAX R8655 SlimLine Circular Polarized UHF RFID Antenna

RFMAX R8655 SlimLine Circular Polarized UHF RFID Antenna

SKU: R8655-LPF-SSF
|
Weight: 1 lbs.

Environment Indoor/Outdoor
Gain 5.5 dBiC
Polarization Right Circular
Read Range Far Field
RFID Frequency UHF

Product Highlights

RFMAX SlimLine Circular Polarized UHF RFID Antenna 865-868 MHz, ETSI, IP68, Right Hand Circular, 5.5 dBiC, Single Band, SMA-Female, Flush Mountable, MNF# R8655LPFSSF

RFMAX R8655 SlimLine Circular Polarized UHF RFID Antenna

Equipped with the familiar and industry leading RFMAX ultra-low profile, the R8655-LPF-SSF offers a compact footprint of only 150 mm / 5.9 inch square in a very smart-looking design. With a 1.5 ft. wider read range than most other antennas of similar size in the market, the circularly polarized R8655-LPF-SSF antenna creates a new benchmark for multi-purpose UHF RFID antennas. IP68 rated and built to RFMAX’s high standard for quality and robustness, the R8655-LPF-SSF can be used for permanent outdoor applications. Its pleasing aesthetics and timeless design blends beautifully with most interiors, which makes the R8655-LPF-SSF very suitable for customer facing environments.

The appropriate mounting solution for this antenna is RFMAX part # HDMNT-100MM


Specifications

SKU R8655LPFSSF
Manufacturer RFMAX
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP68
Polarity Right Hand Circular
Gain 5.5 dBiC
Connector 1 SMA-Female
Height/Length (inches) 5.9
Height/Length (mm) 150
Operating Temp (celsius) -30° to +65°C
Thickness/Diameter (inches) 0.55
Thickness/Diameter (mm) 14
Width (inches) 5.9
Width (mm) 150
Weight (lbs) 0.55 lbs
Material UV-Resistant ABS
Mount Style Flush mount
Product Condition New
$125.00
Quantity Discounts
2+
Contact
