| Region | Global |
| Environment | Indoor/Outdoor |
| Gain | 9 dBiC |
| Frequency Ranges | RFID (865-928 MHz) |
| Polarization | Left/Right Circular |
| Read Range | Far Field |
| RFID Frequency | UHF |
The R9029-WHP-RTF Circularly Polarized outdoor RFID Antenna from RFMAX measures in at 12x12 inches. This unit operates at 9 dBic gain, covers 63 x 63 degrees beamwidth, and is THE BEST choice for passive UHF RFID applications that are OUTDOORS and using the FCC band of 902-928 Mhz. The unit carries a full IP67 rating, and is well suited for outdoor installations such as livestock tracking, tolling, parking gates, overhead race timing trusses, and distribution dock doors. It comes with a fixed RPTNC-Female Connector on the back plate, and has 4 threaded mounting studs in the 100mm VESA pattern. *NOTE: Antenna Bracket, Part # HDMNT-100MM Sold Seperately*
| SKU | R9029WHPRTF |
|---|---|
| Manufacturer Part Number | R9029-WHP-RTF |
| Manufacturer | RFMAX |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | 67 |
| Polarity | Circular |
| Gain | 9.5 dBiC |
| Horizontal/Azimuth Beamwidth | 63 |
| Vertical/Elevation Beamwidth | 63 |
| Connector Type | Connector - Rear |
| Connector 1 | RP TNC-Female |
| Height/Length (inches) | 12 |
| Height/Length (mm) | 305 |
| Operating Temp (celsius) | -45 to +70 |
| Thickness/Diameter (inches) | 1 |
| Thickness/Diameter (mm) | 23 |
| Width (inches) | 12 |
| Width (mm) | 305 |
| Weight (lbs) | 2.6 |
| Weight (grams) | 1200 |
| Material | Plastic |
| Mount Style | 4 Stud |
| Product Condition | New |

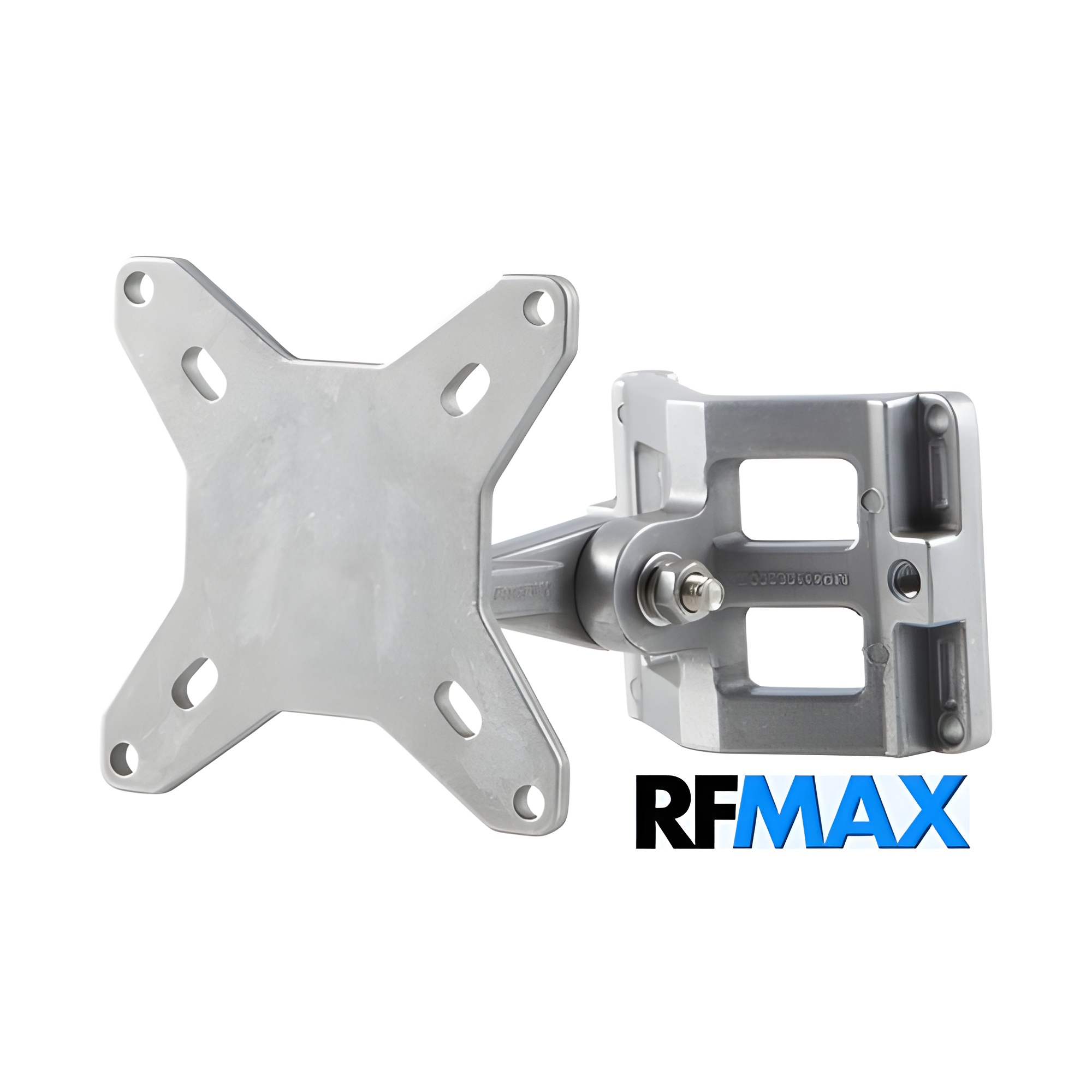

( SKU: HDMNT-100MM )
$68.00
Spec. Sheet
