RFMAX GPS And 5G/4G 2-in-1 Antenna for Motorolla APX8500
| Part Type | Antenna |
| Interface | 5G 4G GPS |
| Environment | Indoor/Outdoor |
| Gain | 3.3 dBi 26 dB |
Product Highlights
RFMAX GPS & 5G/4G 2-in-1 Antenna for Motorola APX8500, Dashboard or Windshield Mount.10 ft Cables & QMA. Adhesive Mount. R2G5A-10SQM MNF# R2G5A10SQMRFMAX Wedge Antennas
RFMAX Wedge Antennas are revolutionizing wireless communication with their innovative design and exceptional performance. These compact, wedge-shaped antennas are engineered to optimize signal strength and coverage in various applications. Whether it's industrial IoT, transportation, or smart cities, RFMAX Wedge Antennas ensure reliable and seamless data transmission. Their sleek form factor allows easy integration into diverse environments, while their advanced technology guarantees enhanced connectivity and reduced interference. Stay connected with the future - embrace RFMAX Wedge Antennas for unparalleled wireless efficiency.

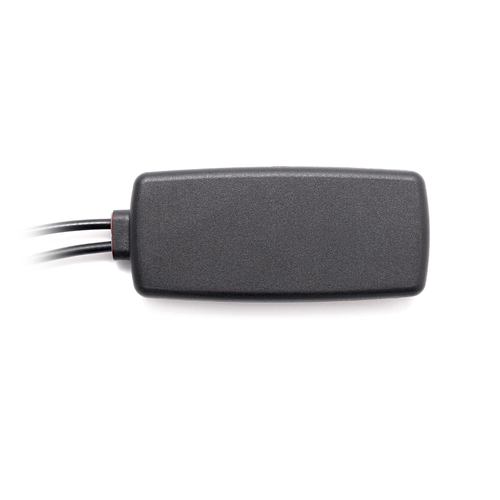

The R2G5A-10SQM is a 2-in-1 combination antenna for GPS (active 3.3 or 5 volt) & 3G/4G/LTE/5G. This unit is meant to be used when the typical roof mount antennas are not practical due to mounting considerations, or when there is a desire for the antenna to be "covert." Unit mounts using adhesive tape (included) with 10 foot LMR100 cables & QMA male connectors. Operates at 4G & 5G Cellular : 617-960/1700-2700/3000-6000 MHz & 1575.42 MHz GPS w/26 dB LNA. The antenna has a 10 foot LMR100 cables & QMA male connector.
Specifications
| SKU | R2G5A10SQM |
|---|---|
| Manufacturer Part Number | R2G5A-10SQM |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 617-5925 MHz (5G/4G/WiFi) |
| Gain | 3.3 dBi |
| Working Frequency 2 | 1575.42 (GPS) |
| Gain 2 | 26 dB (LNA Gain) |
| Antenna Style | "Wedge" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 25 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (mm) | 85 |
| Width (mm) | 35 |
| Weight (lbs) | .5 |
| Material | ABS UV Stable |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Wedge/Adhesive |
| Color | Black |
| Cable Type | LMR-100 |
| Number of Cables | 2 |
| Cable Length (inches) | 120 |
| Connector 1 | QMA-Male |
| Connector 2 | QMA-Male |
| Includes | Direct-Double Side Tape |
| IP Rating | IP67, IP69 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
- No Drilling! Excellent Choice for Leased Vehicles.
- 5G & 3G/4G/LTE Cellular Frequencies: 617-960, 1700-2700, 3000-6000 MHz
- Cellular Antenna Gain: 3.3 dBi (2:1 VSWR)
- GPS Frequency: 1575.42 MHz
- GPS Antenna: LNA Gain: 26 db
- Small, Covert Size: L=3.3 x W=1.4 Inches
- Max Power: 25 Watts
- Operating Temp: -40 to +85 C
- Cables/Connectors: (2x) 10 foot LMR-100 with QMA Male
