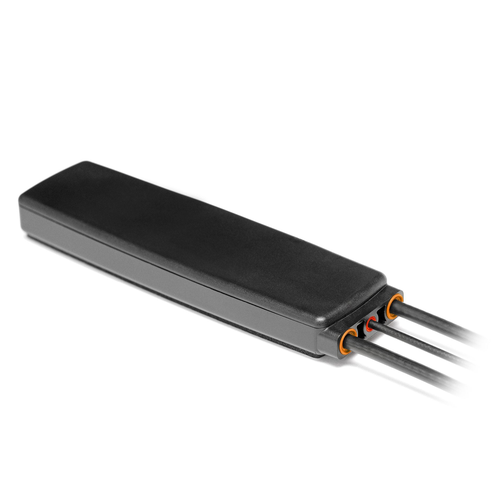

RFMAX 3-IN-1 Dashboard/Windshield Antenna
| Part Type | Antenna |
| Environment | Indoor/Outdoor |
Product Highlights
RFMAX 3-IN-1 Dashboard / Windshield Antenna, No Drill required 1x GNSS + 2x 5G/4G/LTE R3WA-G55-10-SSS MNF# R3WAG5510SSSRFMAX Wedge Antennas
RFMAX Wedge Antennas are revolutionizing wireless communication with their innovative design and exceptional performance. These compact, wedge-shaped antennas are engineered to optimize signal strength and coverage in various applications. Whether it's industrial IoT, transportation, or smart cities, RFMAX Wedge Antennas ensure reliable and seamless data transmission. Their sleek form factor allows easy integration into diverse environments, while their advanced technology guarantees enhanced connectivity and reduced interference. Stay connected with the future - embrace RFMAX Wedge Antennas for unparalleled wireless efficiency.
R3WA-G5W-10-SSS: 1x GPS + 2x 5G/4G/LTE (600-6000 MHz), with SMA Male Connectors, 10 Ft of RG-174 cable. This part is equivalent to Cradlepoint antenna part# 170653-001. The 5G lines are also optimized to work with P25 (700/800 MHz) and WiFi 6e (2.4 GHz, 5.0-6.0 GHz) Radios and Modems. Blue heat Shrink = GPS Line, Red heat Shrink = 5G or WiFi or P25 (700/800 MHz)
Specifications
| SKU | R3WAG5510SSS |
|---|---|
| Manufacturer Part Number | R3WA-G55-10-SSS |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 617-5925 MHz |
| Antenna Style | "Wedge" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 25W |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Wedge/Adhesive |
| Color | Black |
| Cable Type | RG-174 |
| Number of Cables | 3 |
| Cable Length (inches) | 120 |
| Connector 1 | SMA-Male |
| Includes | Direct-Double Side Tape |
| Vehicular | Yes |
| Product Condition | New |
