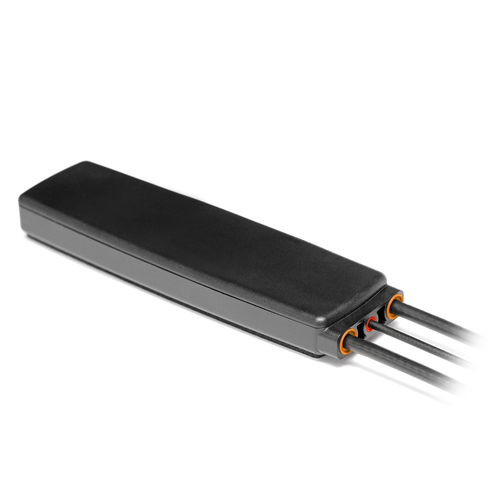

RFMAX Dashboard/Windshield Antenna
| Part Type | Antenna |
| Interface | Cellular Wireless LAN |
| Environment | Indoor/Outdoor |
Product Highlights
RFMAX Dashboard / Windshield Antenna for Havis and Gamber Johnson Docking Station, Triple Pass, No Drill required R3WA-G5W-10-TTT MNF# R3WAG5W10TTTRFMAX Wedge Antennas
RFMAX Wedge Antennas are revolutionizing wireless communication with their innovative design and exceptional performance. These compact, wedge-shaped antennas are engineered to optimize signal strength and coverage in various applications. Whether it's industrial IoT, transportation, or smart cities, RFMAX Wedge Antennas ensure reliable and seamless data transmission. Their sleek form factor allows easy integration into diverse environments, while their advanced technology guarantees enhanced connectivity and reduced interference. Stay connected with the future - embrace RFMAX Wedge Antennas for unparalleled wireless efficiency.
R3WA-G5W-10-TTT: 1x GPS + 1x 5G/4G/LTE +1x WiFi, with TNC Male Connectors. This is a Triple Pass Dashboard / Windshield / Covert Antenna. Blue heat Shrink = GPS Line, Red heat Shrink = 5G or WiFi Use with Havis and Gamber Johnson Docking Station / MDTs***This antenna comes with SMA connectors installed and SMA to TNC adapter screwed on the SMA connector.
Specifications
| SKU | R3WAG5W10TTT |
|---|---|
| Manufacturer Part Number | R3WA-G5W-10-TTT |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Antenna Style | "Wedge" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Wedge/Adhesive |
| Color | Black |
| Cable Type | RG-174 |
| Number of Cables | 3 |
| Cable Length (inches) | 120 |
| Connector 1 | TNC-Male |
| Includes | Direct-Double Side Tape |
| Vehicular | Yes |
| Product Condition | New |
