A transition RFID Portal is used to read RFID tags to capture an event. The event is defined by the end user. Typical events captured by RFID transition portals in a manufacturing facility or warehouse are found at dock doors reading incoming or outgoing goods, work in process reading the movement of products through a manufacturing facility, or access control where access in and out of key areas such as tool rooms or inventory is monitored.
The four types of transition RFID portals are wall-mount RFID portals, fixed RFID tunnels, integrated RFID tables or Integrated portals. These reduce human intervention and manual scanning at common chokepoints throughout the facility. Antennas can tune out cross-talk, reducing erroneous reads and maintain accurate reads through each portal.
At BarcodeFactory we have 25 years of RFID experience. RFID applications start with a consultation where we walk through your application and work together to determine the most cost effective solution. We offer site surveys, hardware, software, maintenance and installation. We offer software APIs that integrate with your ERP system maintenance to meet security and upgrade initiatives. Contact us for a consultation.

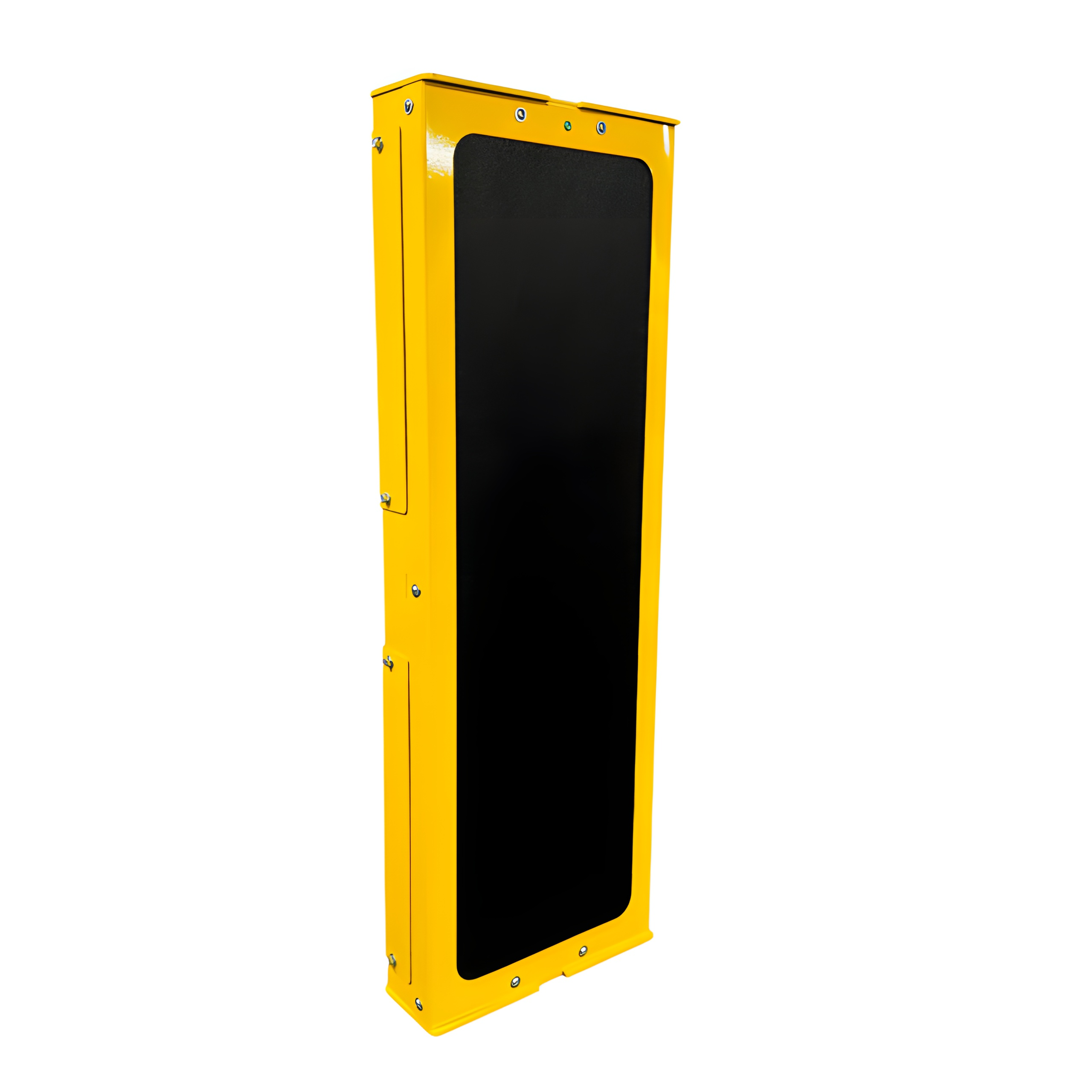

Transition RFID Portal
Reduce Manual Scanning

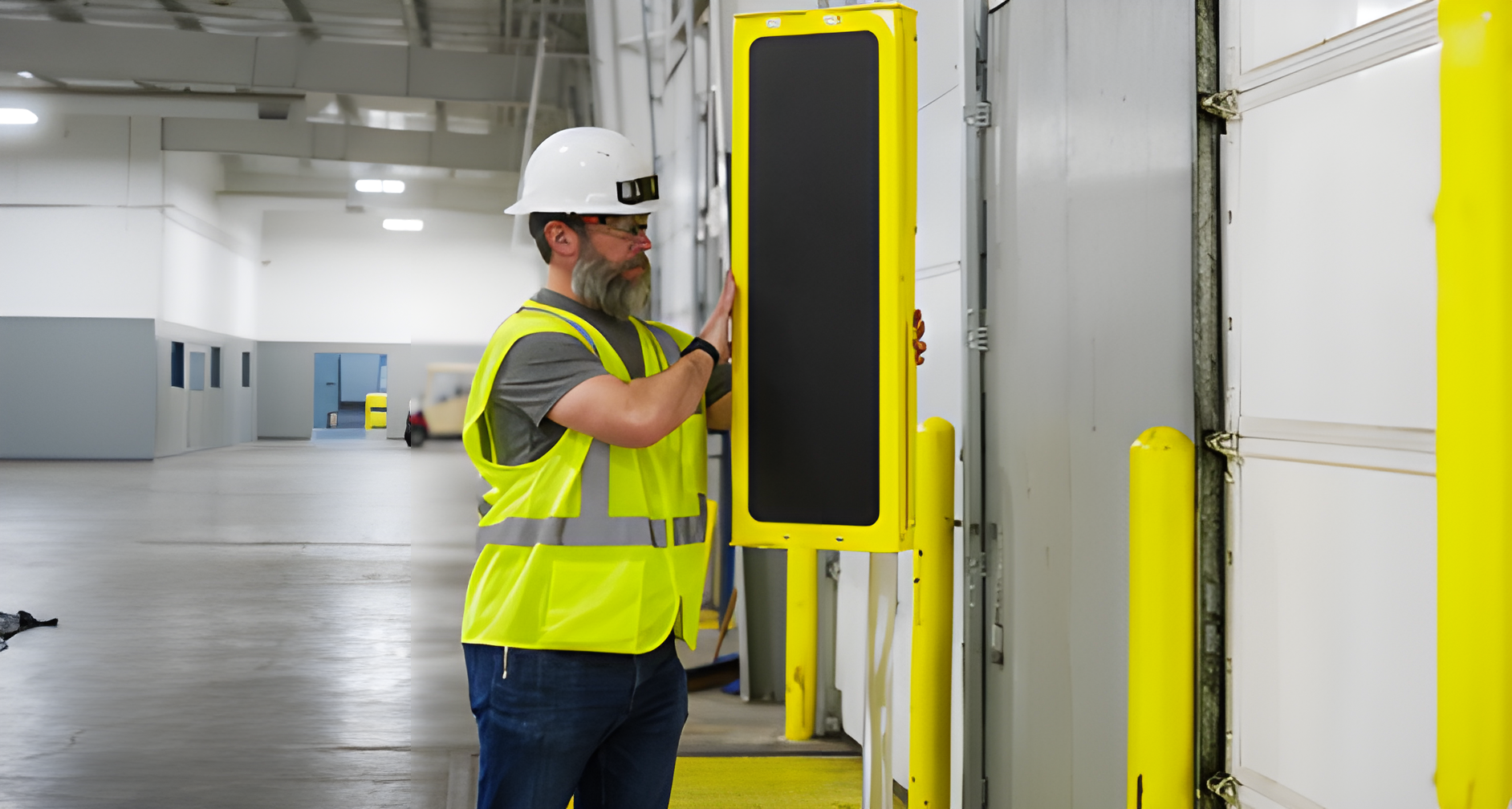

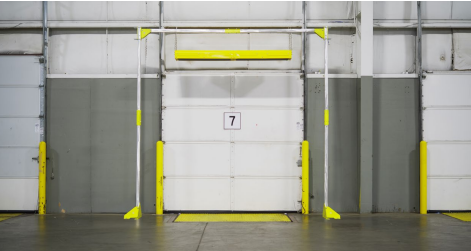

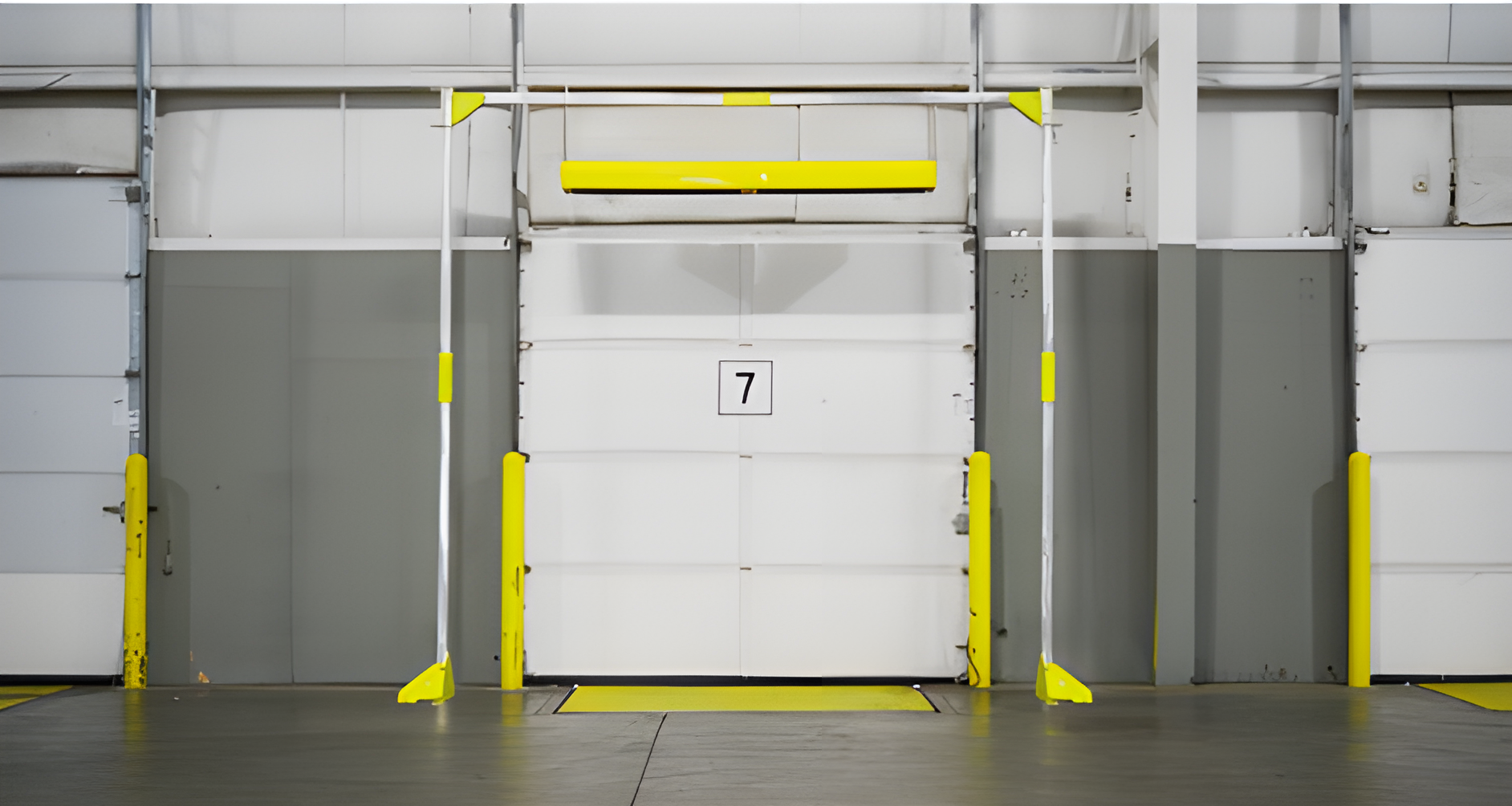

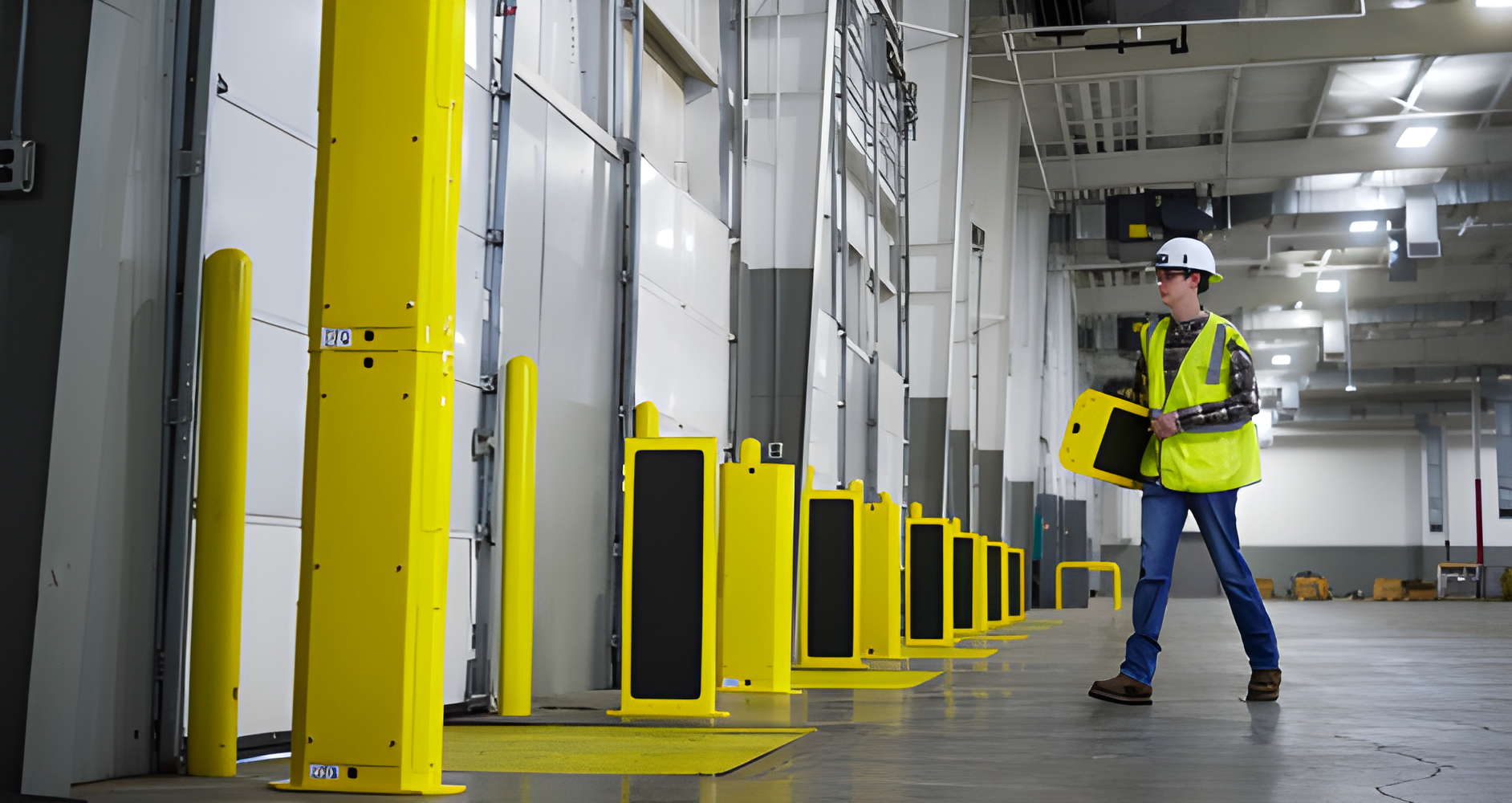

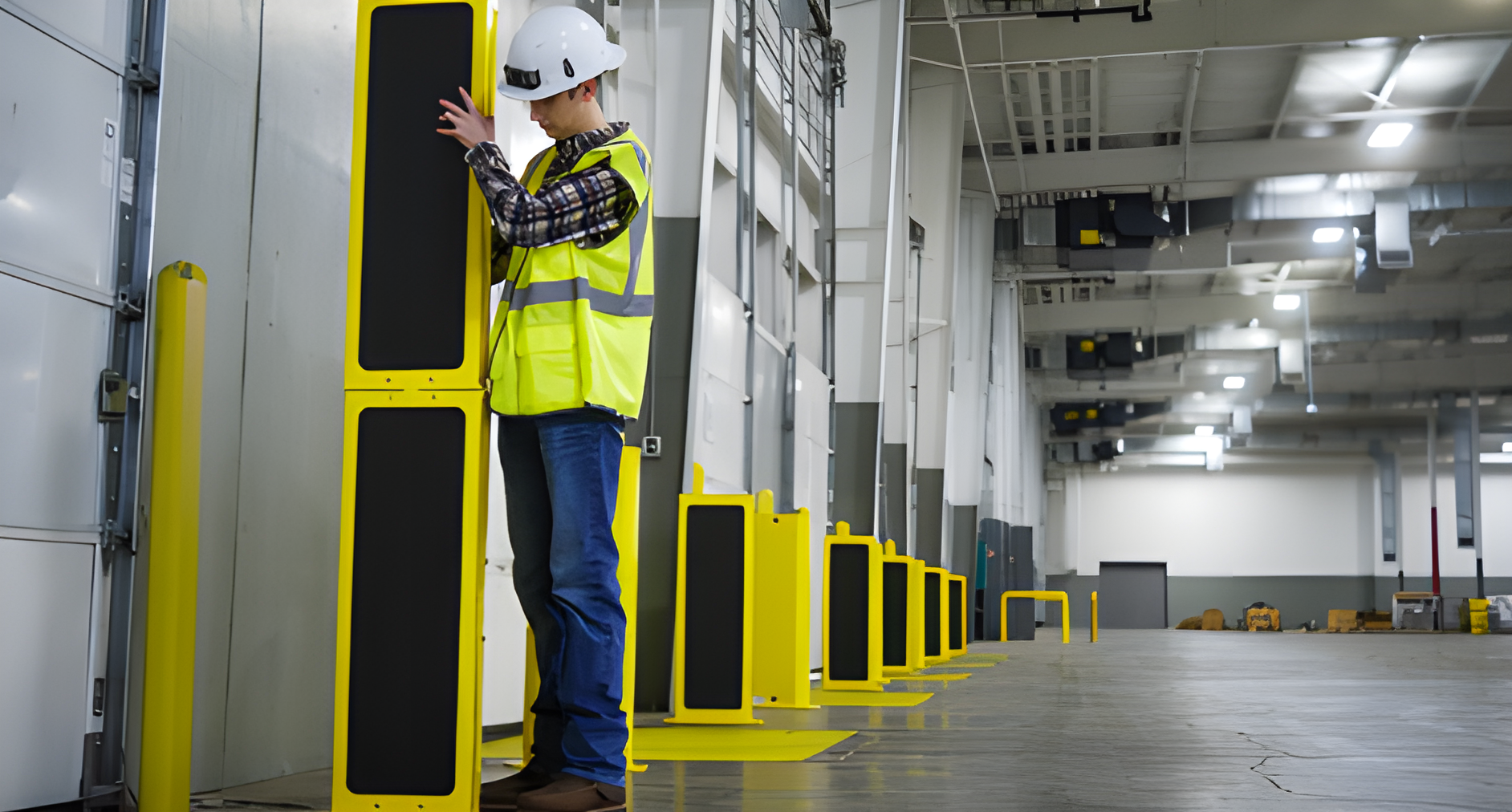

Fast, reliable, highly automated updates. Used primarily at dock doors, these integrated portals can reduce the need for human intervention and manual scanning at common chokepoints. Specialized antennas tune out cross-talk, reducing erroneous reads and sustaining a highly accurate read rate through the portal.
Industry Use
- • Manufacturing
- • Transportation
- • Warehouse Management
Dimensions
- 96in. x 15in. x 4in. (244 x 38 x 10 cm)
- 62in. x 15in. x 4in. (158 x 38 x 10 cm)
Weight
- 45 lbs (21 kg)
- 30 lbs (14 kg)
RFID Reader
RFID Antenna
- Multi-linear Wave(r) Antenna

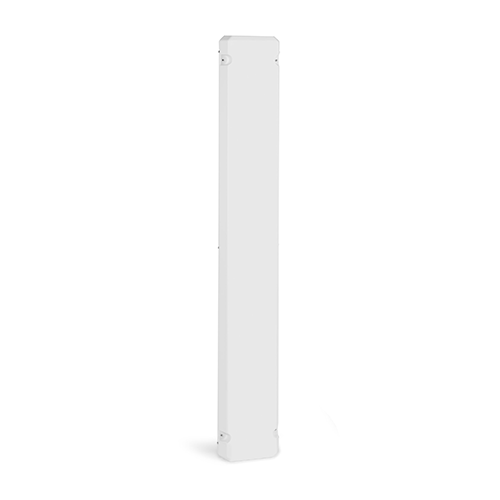

Wall-Mount RFID Portal
Fits Right In
These fully enclosed, plug-and-play units mount easily beside doorways and hallways near storage rooms, offices and warehouses to provide versatile RFID tracking for multiple applications. Specialized antennas tune out cross-talk, reducing erroneous reads and sustaining a highly accurate read rate through the portal.
Industry Use
- • Field Mobility
- • Healthcare
- • Hospitality
- • Location Solutions
- • Manufacturing
- • Retail
- • Transportation
- • Warehouse Management
Dimensions
- 61in. x 9in. x 2in. (155 x 23 x 5 cm)
Weight
- A panel: 10 lbs (5 kg)
- B panel: 8.5 lbs (4 kg)
RFID Reader
RFID Antenna
- Multi-linear Wave(r) Antenna
Fixed RFID Tunnel
Improved Conveyor Throughput
Built especially for inline conveyor operations, these units automatically read tagged assets as they move along the line and through the tunnel, improving workflow accuracy. Specialized antennas provide superior performance optimized for accurate, reliable reads of conveyor-based throughput.
Industry Use
- • Manufacturing
- • Transportation
- • Warehouse Management
Dimensions
- Custom built to fit existing operation
- Standard outer: 42in. L x 35in. W x 64in. H (107 x 89 x 163 cm)
- Standard inner: 42in. L x 29in. W x 30in. H (107 x 74 x 76 cm)
Weight
- 200 lbs (91 kg)
RFID Reader
RFID Antenna
- Multi-linear Wave(r) Antenna
Integrated RFID Table
Tabletop Accuracy
RFID antennas mounted underneath the table are specially configured to read items placed on the surface in any orientation. Specialized antennas provide superior performance for fast, accurate, confident reads in multiple orientations across the table surface.
Industry Use
- • Manufacturing
- • Transportation
- • Warehouse Management
Dimensions
- 48.5in. L x 31.5in. W x 38in. H (123 x 80 x 97 cm)
Weight
- 100 lbs (46 kg)
RFID Reader
- Adjustable height table: Zebra FX9600 RFID Reader
- Fixed height table: Zebra FX9600 RFID Reader, Zebra FX7500 RFID Reader
RFID Antenna
- Multi-linear Wave(r) Antenna
Mobile RFID Pallet
Elevated Reading
Ideal for areas with elevated racking and high tag volumes, these pallet-mounted RFID readers are designed to travel through storage aisles by forklift, collecting accurate information quickly and safely.
Industry Use
- • Manufacturing
- • Transportation
- • Warehouse Management
Dimensions
- 42in. L x 48in. W x 70in. H (107 x 122 x 178 cm)
For more information or to discuss your project, Contact Us or call 888-237-8525.
