Tach-It Mini-Con L-80

Tach-It Mini-Con L-80

SKU: Mini-Con-L-80
|
Weight: 300 lbs.
Applicator Style Stationery
Part Type Adapters
Applicator Type Automatic

Product Highlights

Tach-It Mini-Con-L-80, Automatic L-Clip Label Applicator, Label Size: Minimum - 3/4 inch x 3/4 inch, Maximum - 3 inch x 5 inch, Package Size: Minimum: 2 inch high x 4 1/8 inch, Maximum - 7 3/4 inch high x 7 1/2 inch, Label Roll Diameter: 11 1/2 inch, Speed: 60 ft per minute, Core Size: 3 inch

*This product requires shipment by truck. Please contact us for shipping options.

For New Label Applications BarcodeFactory will provide a free test of your label applied to your product, and provide a video and report of the results. This testing is recommended on all new applications of print to apply to ensure success of your project.

Tach-It Mini-Con L-80 Label Applicator

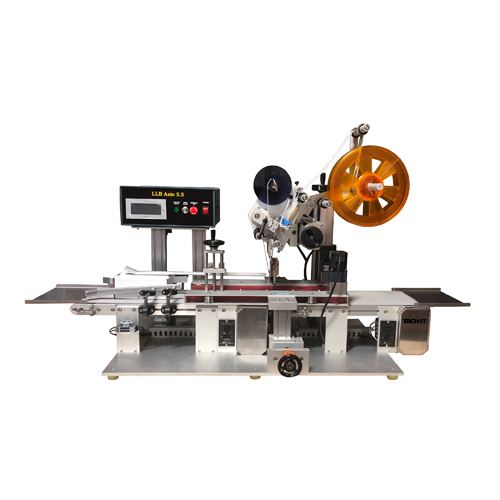

The Tach-It Mini-Con L-80 is an automated L-Clip Label Applicator that applies a label or wafer seal from the top to the front of a package. A larger version of our popular and proven Mini-Con L, the Mini-Con L-80 allows for use of a larger package and bigger diameter labels. Offering a secure and attractive closure, the Mini-Con L-80 has applications in many industries including; pharmaceuticals, medical, vitamin and supplement markets, food service and retail applications. Utilizing a wafer seal or label up to 3" in diameter, the Mini-Con L-80 can be used as a table top machine or put inline as part of an integrated packaging system. Equipped with a touch screen control panel with 5 memory presets and a target counter the Mini-Con L-80 has 2 variable speed bottom conveyors and variable speed side belt conveyors to move the product quickly through the label application process.

Features and Benefits

  • Automatic L-Clip Label Applicator.
  • Applies a label or wafer seal from the top to the front of a package.
  • Can apply a wafer seal or label from 3/4 inch x 3/4 inch up to 3 inch x 5 inch.
  • Provides a secure and attractive closure to any package.
  • Perfect for use in the pharmaceutical, medical, vitamin and supplement, food service and for other items that need an L-Clip closure.
  • Has adjustable speed bottom conveyors and side belt conveyors for high production speeds.
  • Can be used as a stand alone table top unit or integrated into fully automated packaging lines.
  • Touch Panel controls include target counter.
  • Dwell setting in control panel for exact label placement on the container.
  • Stepper motor reliability.
  • Non-contact technologically advanced controls and label sensors for transparent or opaque labels.
  • No special operator training or tools needed. Easy to use and setup.

Specifications

  • Machine: Length - 52 inch, Width - 34 inch, Height - 37 inch
  • Label Size: Minimum - 3/4 inch x 3/4 inch, Maximum - 3 inch x 5 inch
  • Package Size Minimum: 2 inch high x 4 1/8 inch wide
  • Package Size Maximum: 7 3/4 inch high x 7 1/2 inch wide
  • Label Roll Diameter: 11 1/2 inch
  • Speed: 60 ft per minute
  • Power: 110 Volt - 270 watts
  • Core Size: 3 inch
