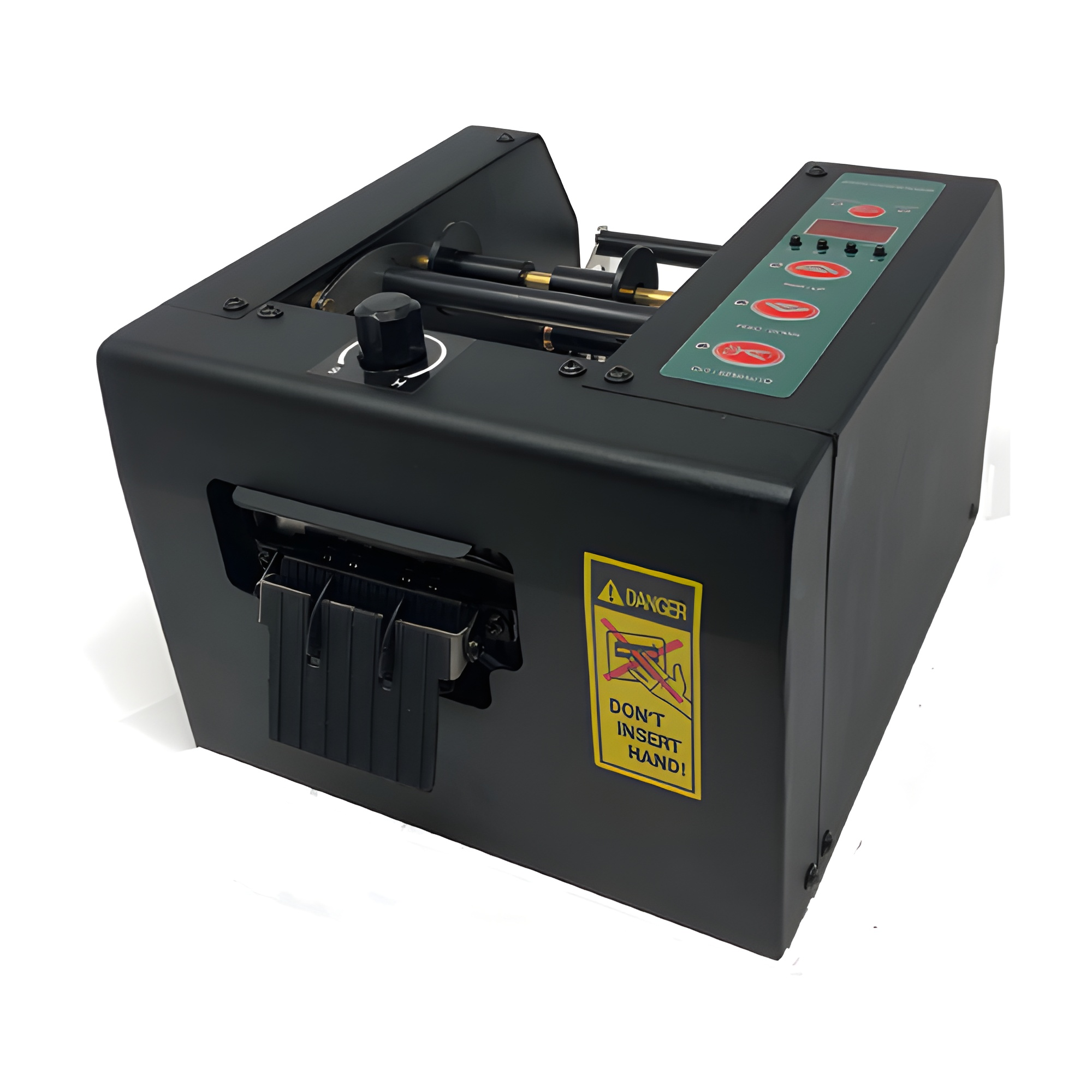

Tach-It 6180 Automatic Definite Length Tape Dispenser

This heavy duty automatic feed and cut definite length tape dispenser can dispense and cut most commonly found packaging tapes and materials up to 3 1/8 inch wide. As the most durable definite length dispenser due to the all metal internal components, the 6180 is reliable and easy to use with push button and LED controls and 4 programmable memory presets. The Tach-It Model 6180 can cut from 1/2 inch to 39.3 inches in length. The 6180 has 3 modes. In random mode, the operator presses the feed button until the desired length of tape is fed and then presses the cut button to cut the tape. In Semi-Automatic mode, the pre-determined length of tape is fed and cut and removed from the machine. When the operator is ready for the next length of tape, they press the cut button and the tape is fed to the pre-determined length. In Automatic mode, the model #6180 will feed the tape to the pre-determined length and once removed from the machine, the next piece of tape is immediately fed. Small bench top design, unique cradle design that holds the roll of tape and allows for large roll capacity without any concern for core size and adjustable tape pressure to ensure positive tape feeding are all advantages of this machine.

Features and Benefits

• Automatic Definite Length Tape Dispenser.
• Heavy Duty will All Metal Gears and Shafts.
• 4 programmable memory presets for tape lengths.
• Can feed tape up to 3 1/8 inches in width.
• 3 Modes including Automatic which feeds and cuts the next piece of tape as the previous one is removed.
• Can cut most types of tapes including carton sealing, packaging, filament, acetate, masking, flat back, various masking materials and many others.
• Easy to read LED and push button controls.
• Adjustment for different thicknesses of tapes for positive feeding.
• Available in various widths based upon your specific application.

Specifications

• Machine: Length - 9 inch, Width - 7 1/2 inch, Height - 6 inch
• Tape Width: Maximum - 3 1/8 inch, Minimum: 3/4 inch
• Tape length: Maximum - 39.3 inch, Minimum: 1 inch
• Core Size: Not Applicable due to Cradle Design
• Maximum Tape Roll Diameter: 12 inch (optional large diameter tape roll stand available)
• Power: 110 Volt VAC
• Speed: 7 inches per second.
