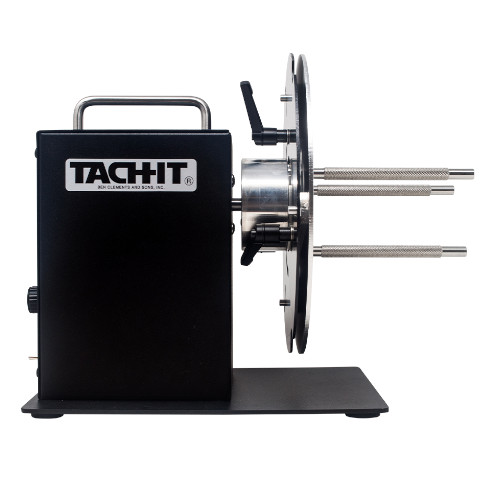

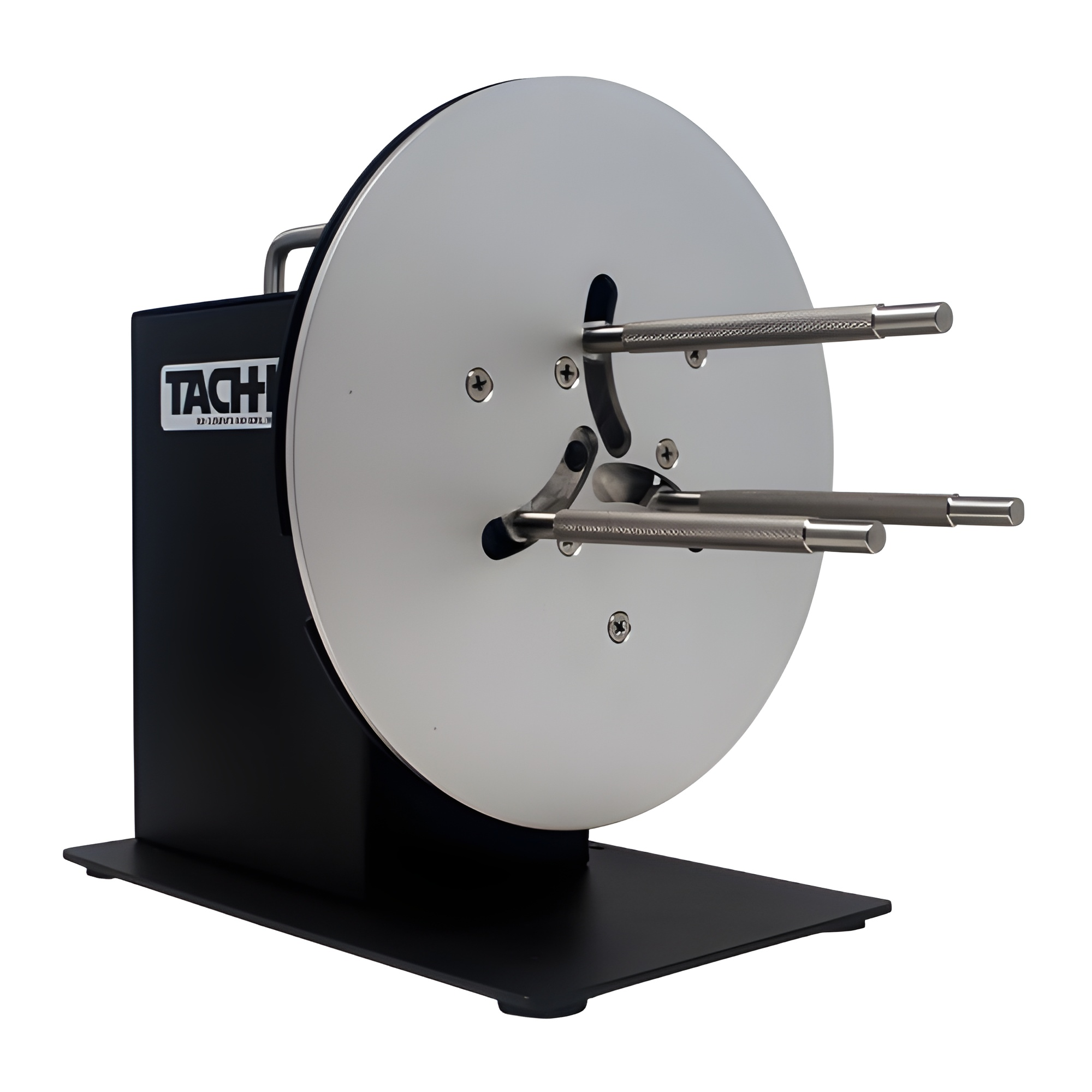

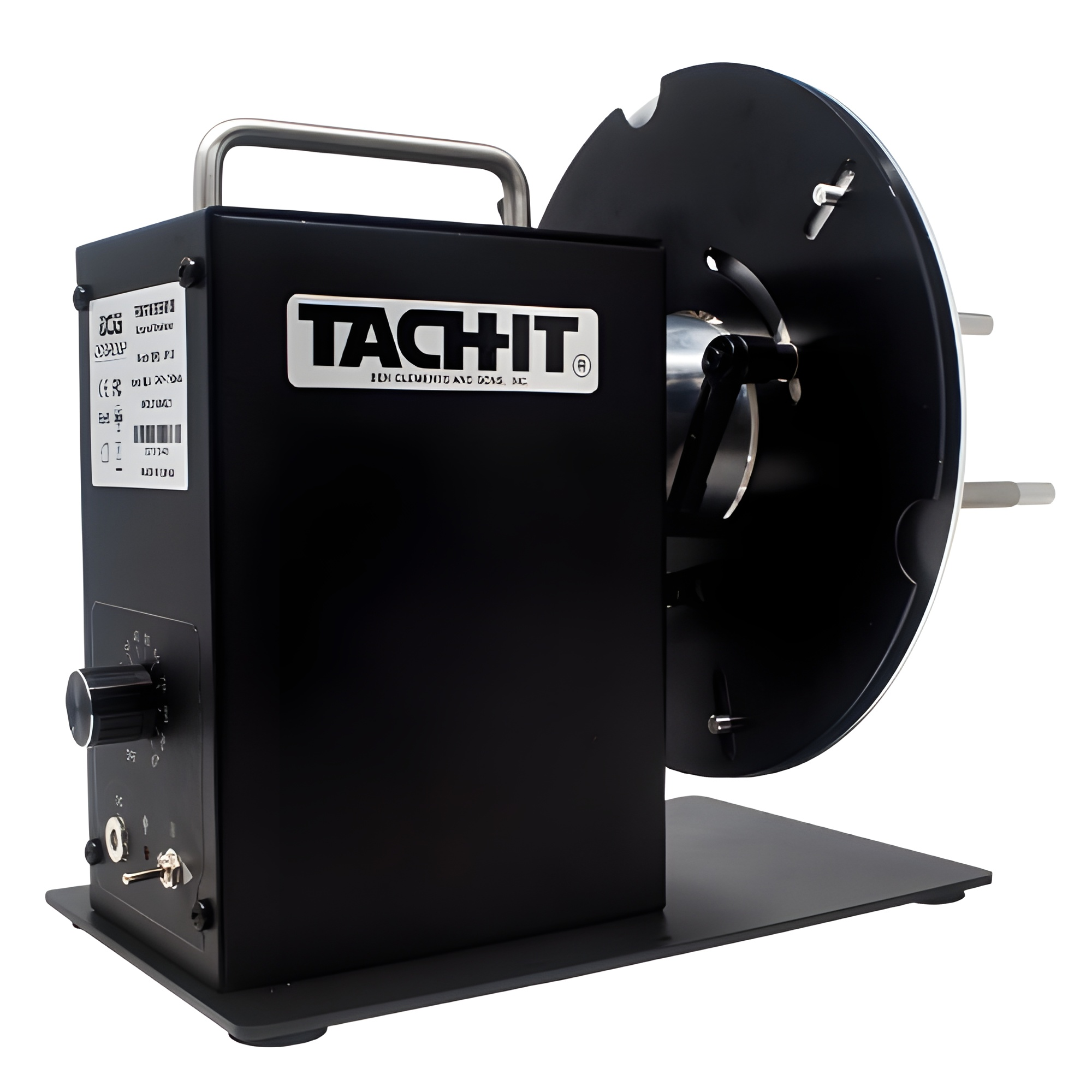

Tach-It LR500 Label Rewinder and Unwinder

SKU: LR500
|
Weight: 13 lbs.

Part Type Rewinder Unwinder

Product Highlights

Tach-It LR500 Label Rewinder, Maximum Width - 4.72 inch (120mm), Minimum Width: Not Applicable, Core Size: 1 inch (25.4mm) Through 4 inch (101.6mm), Maximum Label Roll Diameter: 8 1/2 inch (220mm), Power: 100 Volt - 240 Volt AC, Variable Speed Up to 12 inch per Second

Tach-It LR500 Label Rewinder

Tach-It's Model LR500 Label Rewinder has a very unique feature which allows the operator to easily change the core sizes. While a 3 inch core is industry standard in most markets, some hand-held and specialized machinery requires different core sizes for their labels to work properly on their equipment. This is where our LR500 has become very popular. Easy to adjust for a 1 inch core to a 4 inch, the LR500 does not require any special training or tools to make this changeover. Bi-directional, the LR500 is able to either rewind or unwind labels at a speed of up to 12 inches per second. Perfect anywhere either fan-fold or computer generated labels are used, the LR500 has been found to have large market need in the following industries including; pharmaceutical and medical packaging, retail, manufacturing, industrial, food service and anywhere labels need to be rewound onto a roll. Designed for 24.7.365 operation the LR500 has a slip clutch for consistent winding tension without breaking of the liner and a compact table top design.

  • Adjustable Core Label Rewinder.
  • Easily adjustable for core sizes from 1 inch to 4 inch in diameter.
  • Works in conjunction with thermal transfer printers.
  • Can be used to roll and rewind fan-folded or computer generated labels.
  • Bi-directional and can be used to rewind or unwind rolls of labels as needed.
  • Slip clutch for consistent winding tension without liner breakage.
  • Perfect for pharmaceuticals, medical packaging, retail, manufacturing, industry, food service or anywhere labels need to be rolled onto core.
  • Variable speed motor can wind labels up to 12 inches per second.
  • Quick release handles allows for core size changes without tools.

SPECIFICATIONS

  • Machine: Length - 13 inch (330 mm), Width - 6 inch (153 mm), Height - 10 inch (254 mm)
  • Weight: 12.1 Lbs. (5.5 Kgs)
  • Maximum Width - 4.72 inch (120 mm), Minimum Width: Not Applicable
  • Core Size: 1 inch (25.4 mm) through 4 inch )101.6 mm)
  • Maximum Label Roll Diameter: 8 1/2 inch (220 mm)
  • Power: 100 Volt - 240 Volt AC
  • Speed: 12 inches per second.
