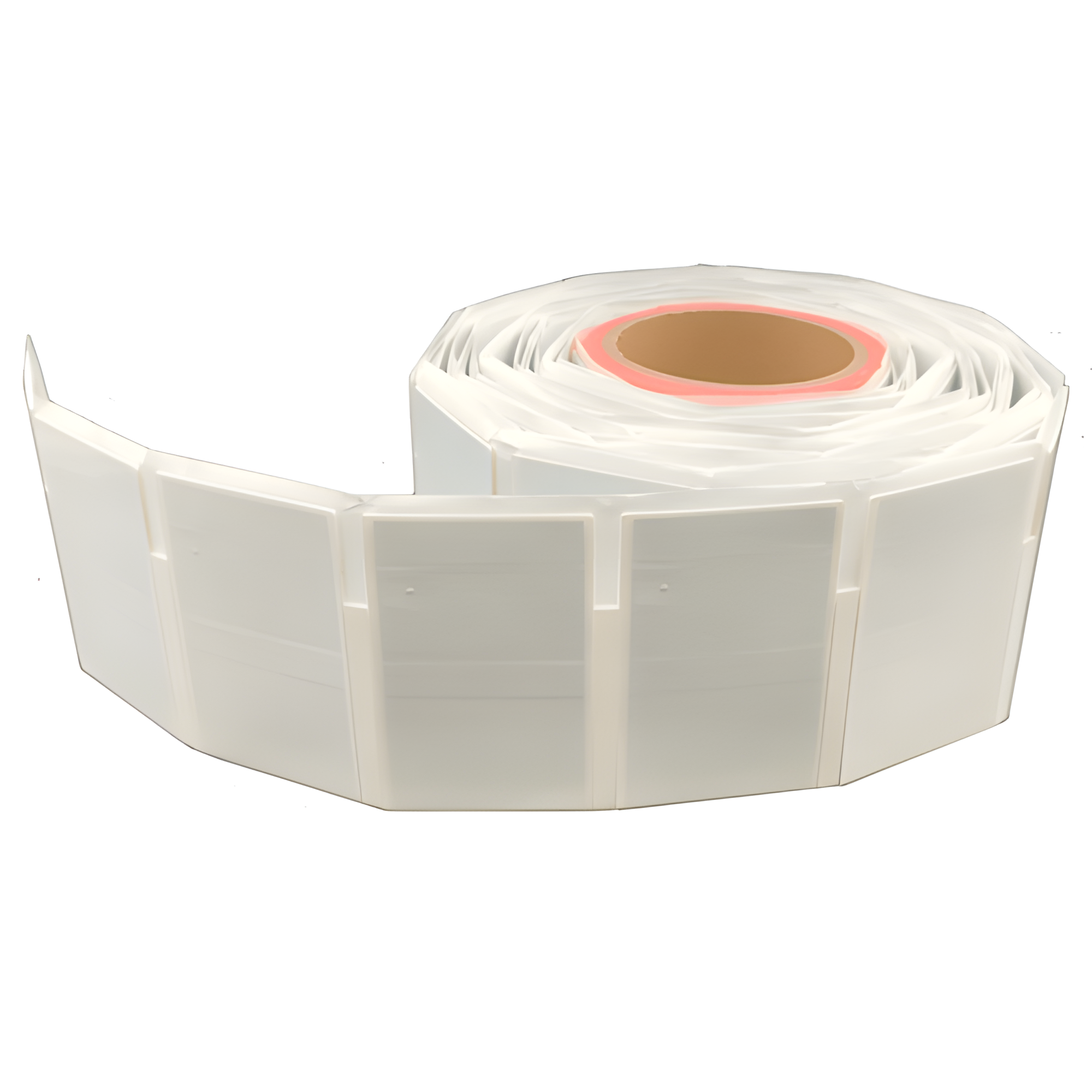

Xerafy Mercury 86 Max Metal Skin RFID Label [EU Frequency]
SKU: X8654-EU011-R6P
Weight: 1.65
lbs.
| Labels by Printer | Printronix T6000e Sato CL4NX RFID Zebra ZT411 RFID |
| Print Technology | Thermal Transfer |
| Material Type | Synthetic Labels |
| Integrated Circuit | Impinj Monza R6P |
| Width (inches) | 3.39 inch |
| Length (inches) | 2.13 inch |
| Core Size | 3.00 inch |
| Format Type | Roll |
| Adhesive Type | Permanent |
| RFID Frequency | UHF |
| Labels Across | 1 across |
| Style | Durable Industrial |
| Color | White |
| RFID Labels Per Roll | 150 |
Product Highlights
3.39 x 2.13 x 0.05, UHF, Impinj Monza R6-P, 62.34-Foot Read Range (Fixed), 36.09-Foot Read Range (Handheld), Industrial Adhesive, EU Frequency, Material - White Thermal Transfer Face Stock, 150 Labels Per Roll, 1 Roll Per Case, Priced Per Roll
Spec. Sheet
Largest Printable Xerafy RFID Label
The Mercury 86 Max Label is part of the Metal Skin® series of high-performance UHF RFID labels that work on and off metal. It is optimized for on-site printing and encoding thanks to its lightweight, flexible, and low-profile design.
The RFID sticker's large printable area makes it an ideal solution for asset tracking systems that deploy RF identification alongside human and computer-readable information like barcodes and graphics.
Key Features
- Flexible label: for curved surfaces
- Printable: human and computer readable
- Multi-surface: on metal or on liquid
- 19 m read range: read from long distance
- IP68 rating: waterproof
Applications
- Global supply chain
- Logistics
- Datacenter servers
- E-commerce
Technical Specifications
- RF protocol 1S0/IEC 18000-6C (EPC Gen2)
- Frequency 902-928 MHz (US); 865-868 MHz (EU)
- IC type (chip) Impinj Monza R6-P
- Chip memory 128 bits EPC; 48 bits unique TID; 32 bits user memory
- Read range fixed Up to 62.34 ft (8 m)
- Read range handheld Up to 36.09 ft (6 m)
- Polarization Linear
Environmental Specifications
- Operational -40°C to +85°C
- Survival -40°C to +85°C
- IP rating IP68
- Compression strength 92 psi (634 kPa)
- Printer compatibility Sato CL4NX Plus, Postek TX3r, TSC Printronix T6000e; Zebra ZT411R
- Vibration MIL-STD-810G
- Warranty 1 year
