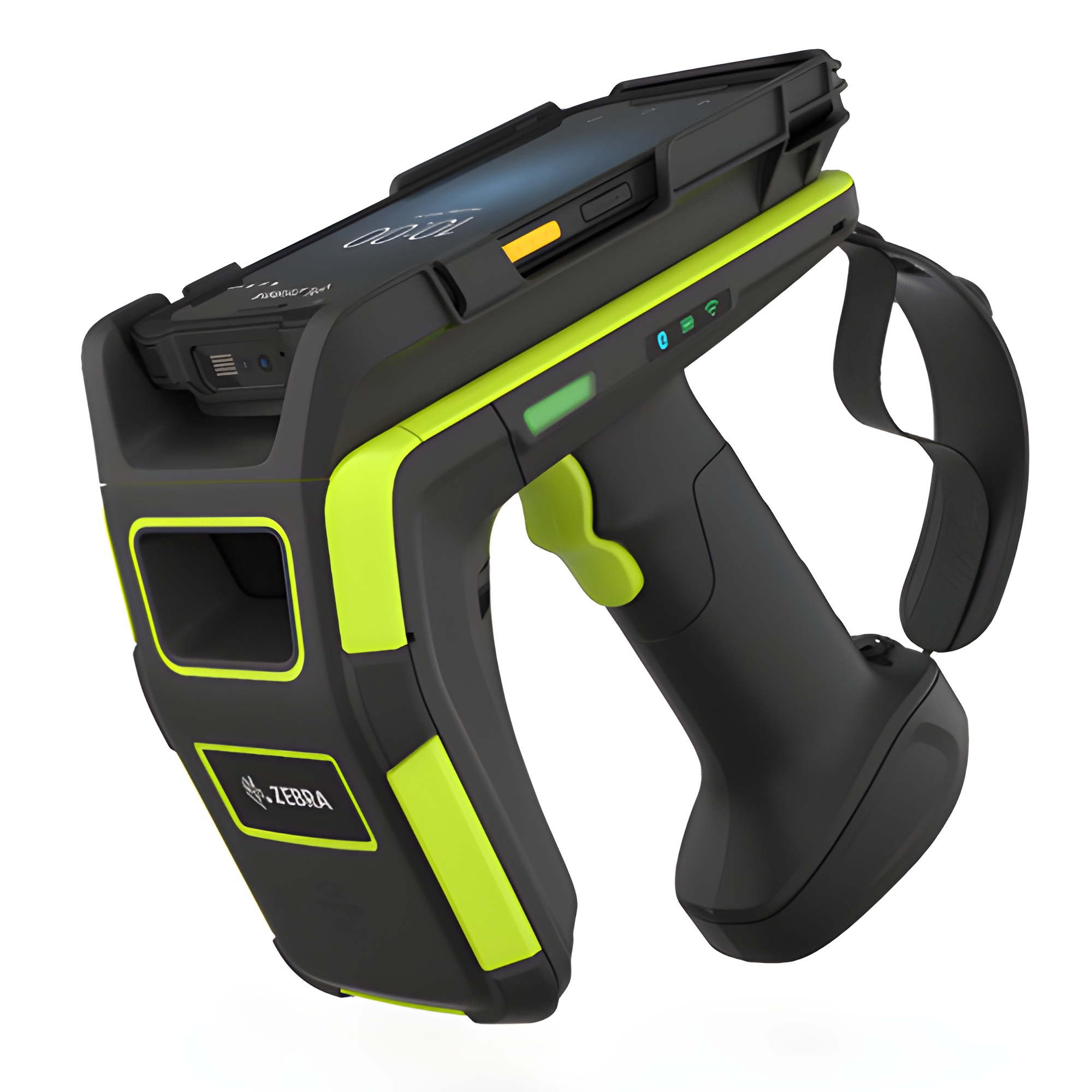

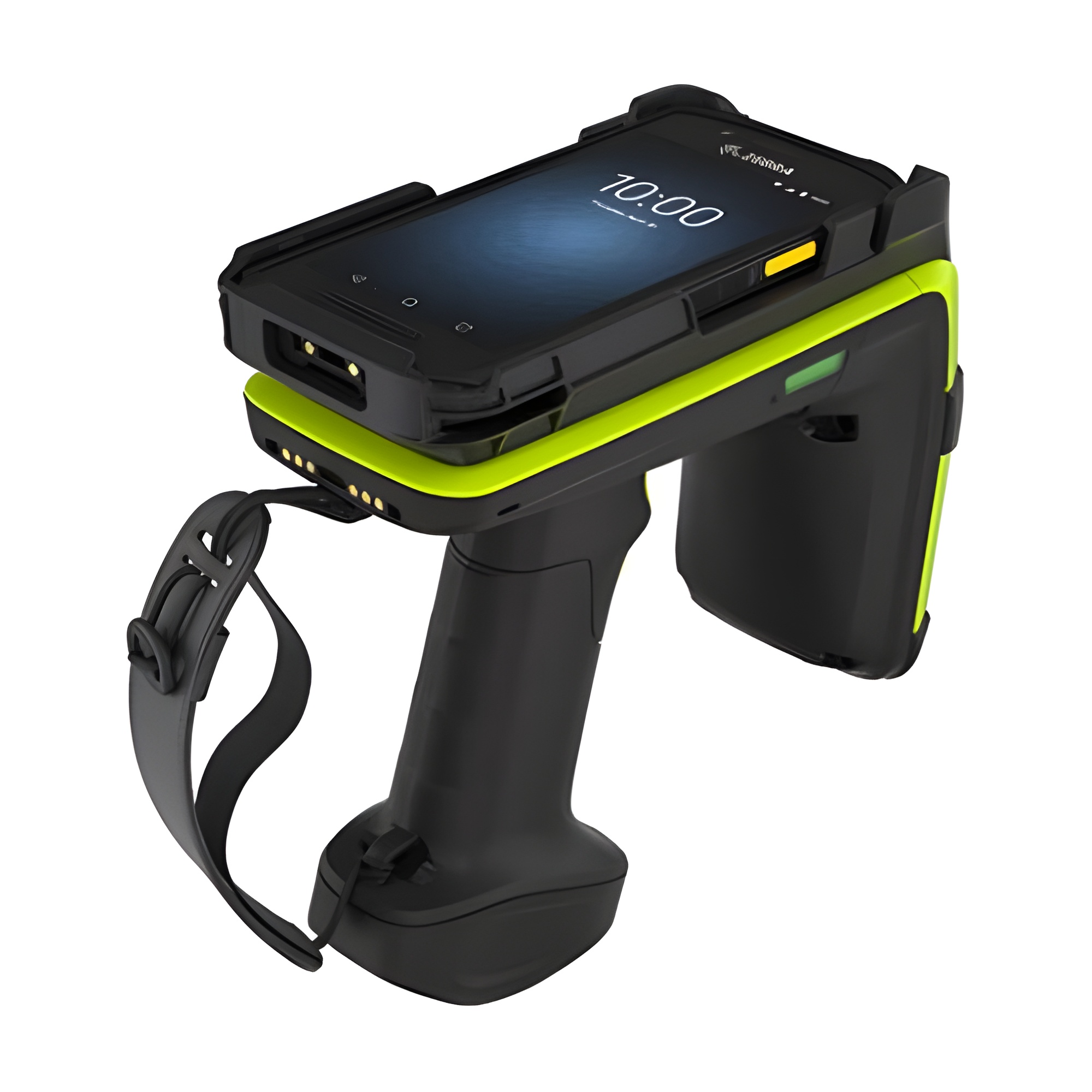

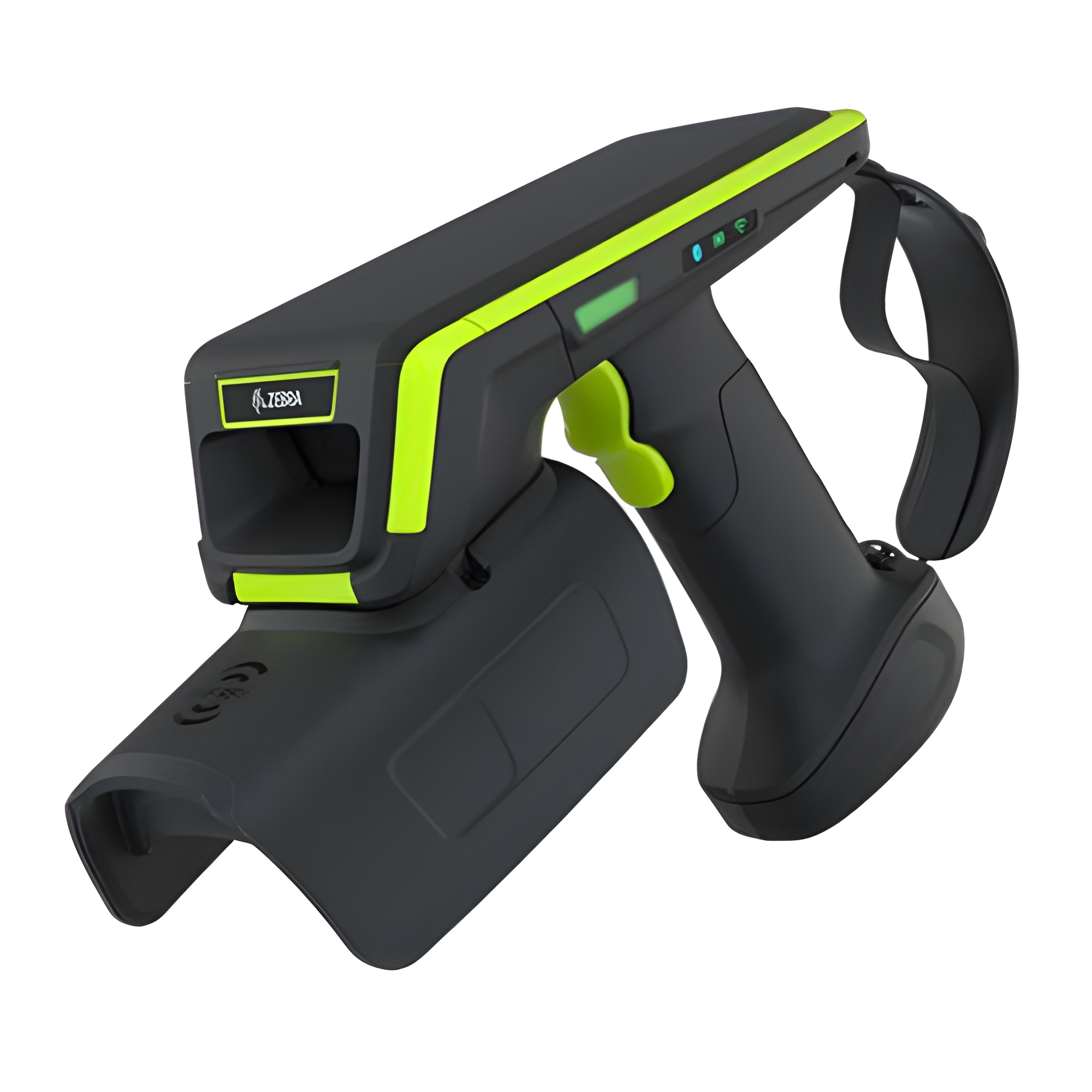

Zebra RFD9090 UHF RFID Sleds

SKU: RFD9031-G60G700-FT
|
Weight: 3 lbs.
Form Factor Gun Style
Scanner Type 2D Area Imager
Form Factor Handheld
Interface Bluetooth USB Wireless LAN USB-A
IP Rating IP65 IP67
Features Cold Storage
RFID Frequency UHF
Regional Compatibility US Only Canada Only Puerto Rico Only
Compliance TAA Compliant

Product Highlights

Zebra /, RFD90, Standard Range Circular Polarized Antenna, UHF RFID, Bluetooth, Wi-Fi, Gun, SE4850 Extended Range Imager, 7000mAh Battery, US, Canada, and Puerto Rico Only, TAA Compliant

*Mobile Device Sold Separately

TAA Compliant
IP65 Rating
2D Barcodes
1D Barcodes
Spec. Sheet

Zebra RFD90 Ultra-Rugged UHF RFID Sleds

Keep your supply chain moving and track assets and inventory with Zebra RFD90 Ultra-Rugged UHF RFID Sleds. Built to perform in demanding environments, these sleds are tested for 6-foot (1.8-meter) drops to concrete and sealed to industrial-grade IP65 and IP67 ratings. Adapt to new and emerging technologies with these ultra-rugged sleds that connect to current and future Zebra mobile computers and 3rd-party smartphones. Wi-Fi 6 enables easy over-the-air (OTA) device management.

Model RFD9030 Standard-Range Ultra-Rugged UHF RFID Sled RFD9090 Long-Range Ultra-Rugged UHF RFID Sled
Description

Standard Range Durability

The RFD9030 Ultra-Rugged UHF RFID Sled enables rapid inventory counts and increased workflow accuracy across a wide variety of harsh conditions with a standard read range of 22 feet (6.7 meters).

Long Range Ruggedness

The RFD9090 Ultra-Rugged UHF RFID Sled enables rapid inventory counts and increased workflow accuracy across a wide variety of harsh conditions with an extended read range of 75 feet (22.9 meters).
Key Product Features
  • 22 feet (6.7 meters) read range
  • IP65 (spray) and IP67 (submersion) sealing
  • Multiple 6 ft./1.8 m drops to concrete
  • 75 feet (22.9 meters) read range
  • IP65 (spray) and IP67 (submersion) sealing
  • Multiple 6 ft./1.8 m drops to concrete

Zebra RFD90 Sled Host Device Mounting Compatibility

Host Device eConnex™ Support* Bluetooth Support* Exoskeleton
Required		 Handstrap
Supported
Zebra TC21/26 - ADP-RFD90-TC2X-1R No No
Zebra TC51/52/52x/56/57/57x - ADP-RFD90-TC5X-0R SG-TC5X-EXONHS-01 No
Zebra TC52ax with SE4720 ADP-RFD90-TC5X-1E ADP-RFD90-TC5X-0R SG-TC5X-EXONHS-01 No
Zebra TC70/70x/72/75/75x/77 ADP-RFD90-TC7X-1E ADP-RFD90-TC7X-1R No Yes
Zebra TC53/58 ADP-RFD90-TC5X-2E ADP-RFD90-TC5X-2R SG-NGTC5EXO1-01 Yes
Zebra TC73/78 ADP-RFD90-TC7X-2E ADP-RFD90-TC7X-2R No Yes
Third party Smartphones and Tablets - ADP-RFD90-BT-1R - -

*Zebra eConnex™ Adapters MUST be used in conjunction with mobile devices that come standard with 8-Pin or 10-Pin Back I/O Connectors.

*Zebra Bluetooth Adapters® are compatible with mobile devices that come standard with OR without 8-Pin Back I/O Connectors.

Ultra-Rugged Ergonomic Design

Engineered to withstand harsh conditions, these ultra-rugged sleds are dust-proof, sprayproof, water-proof, and tested for drops up to 6 feet (1.8 meters) onto concrete surfaces and boast an extended operating temperature range of -4°F to 131°F (-20°C to 55°C). Superior ergonomics contribute to worker comfort and productivity by reducing strain.

Industry-Leading Performance

Enable rapid inventory counts and increase workflow accuracy with a standard read range of 22 feet (6.7 meters) or extended range of 75 feet (22.9 meters). The ultra-accurate item-finder mode helps workers locate critical items quickly and easily. And with a 7,000 mAh battery, RFD90 Sleds keep going hour after hour.

Flexible and Future-Proof

Integrated Wi-Fi 6 capability allows for easy over-the-air (OTA) device management, while Bluetooth 5.3 and NFC tap-to-pair make it easier than ever to connect to current and future Zebra mobile computers and third-party smartphones. Zebra eConnex™ adaptors allow you to mount a broad selection of rugged Zebra mobile computers, while the OtterBox uniVERSE adaptor provides support for many third-party smartphones.
