Zebra RS2100 Wearable Ring Barcode Scanner

Zebra RS2100 Bluetooth Ring Scanner

Introducing the RS2100, the industry’s smallest and lightest wearable scanner, for use in enterprise environments where workers will benefit from ergonomic hands-free scanning, including front of store, warehouse pack stations, manufacturing assembly, and inventory counts. The RS2100 offers high performance scanning of both 1D and 2D barcodes with the SE4770 imager and has an integrated battery that supports full shift operation. The RS2100 connects via Bluetooth to all Zebra Bluetooth-enabled mobile computers, including WT6300, TC52, TC53, TC57, TC58, TC21, TC22, TC26, TC28, ET4x, ET5x, and L10 as well as consumer Bluetooth-enabled devices, including Android, iOS & Windows PC.

The RS2100 delivers unparalleled ergonomics and comfort in enterprise Bluetooth wearable scanners. A low profile back of hand mount ensures workers get lightweight comfort with minimal interference when reaching into tight pick locations or narrow shelves. The mount is designed to fit a wide range of hand sizes, even when the worker is wearing light gloves, and reduces management complexity with one size fits all, left and right hand variants. And a version of the low profile back of hand mount will be available for the RS5100 and RS6100, to enable unprecedented comfort for Zebra’s premium Bluetooth wearable scanners.

The RS2100 also sets a new standard for value in wearable scanners. While the RS2100 features a durable design, including IP54 sealing and a 6 foot drop to concrete across the operating temperature range, it is offered at a price point that allows more workers to benefit from the productivity increases driven by hands-free mobility.

Zebra RS2100 Features

Small and lightweight

• With a weight of just 31 grams and 1.6 cubic inches in size, the RS2100 is the smallest enterprise-grade wearable scanner.

Designed to meet the needs of a wide range of use cases, with features customers require

• Withstands multiple 6 foot/1.8 meter drops to concrete, over the temperature range
• Designed to meet 1,000 1.6 ft./0.5 m tumbles – the equivalent of 2,000 hits
• IP54 sealing against dust and water intrusion
• Supports operation between 0°C / 32°F and 122°F / 50°C
• An integrated, 480mAh battery provides full shift run times at aggressive scan rates
• Class 1 and Class 2 Bluetooth, for up to 300 feet / 90 meters of working range
• Prevent loss of the RS2100 using Device Central Smart Leash
• Find a lost RS2100 scanner using the Device Tracker tool

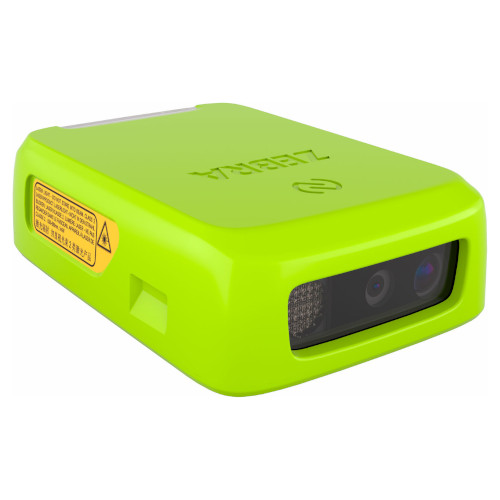

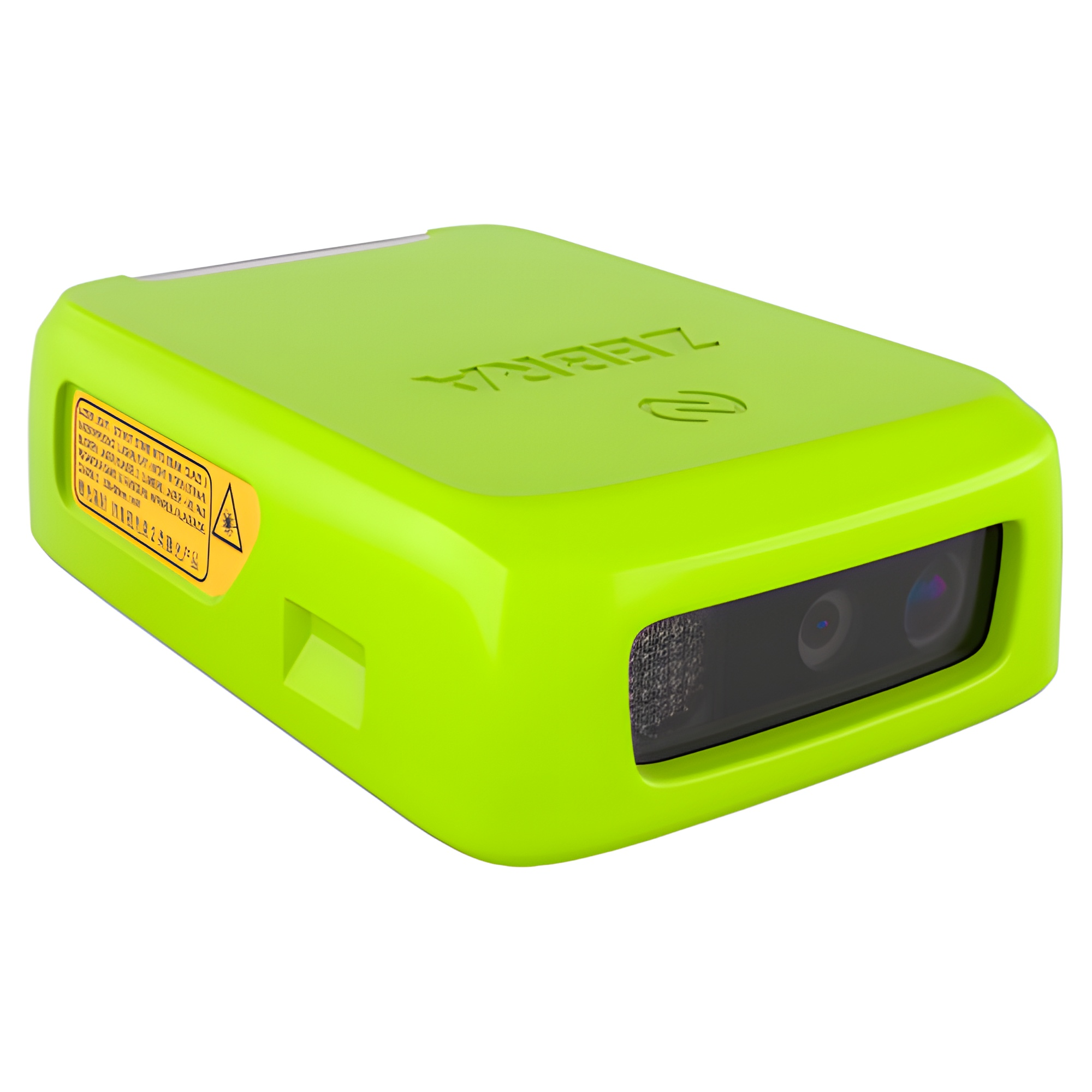

High performance SE4770 1D/2D scan engine

• Enables scans from as close as 1.1 in./2.8 cm to over 3 ft./0.9 m away
• High motion tolerance, for effective scanning even when objects or workers are in motion
• Red crosshair laser aimer provides accurate and highly visible aiming

Simple pairing and configuration

• Automated Bluetooth pairing to Zebra mobile computers using NFC tap-to-pair or scan-to-pair
• Manual Bluetooth pairing to a multitude of consumer devices, including Android, iOS and Windows
• 123Scan support for configuration and updates

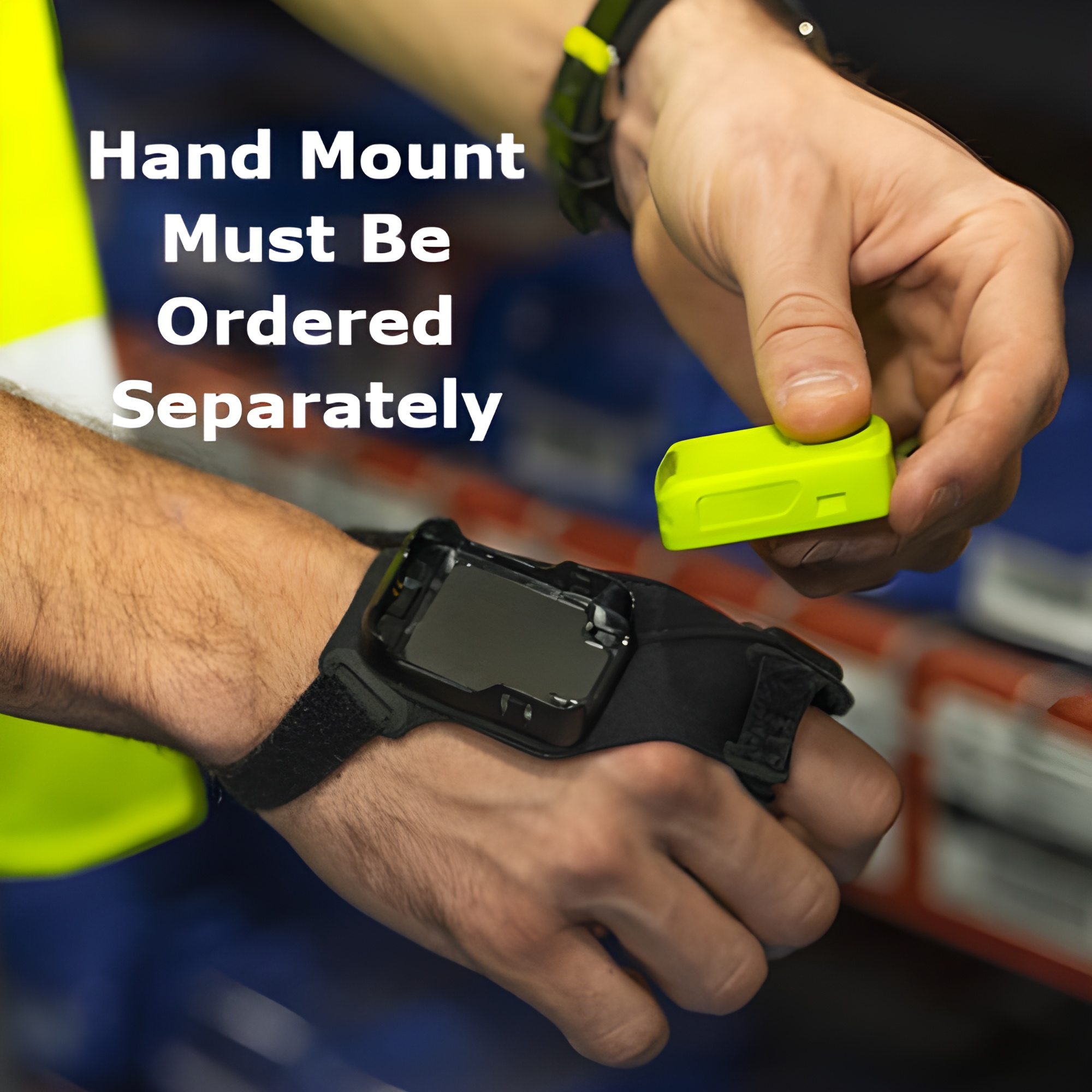

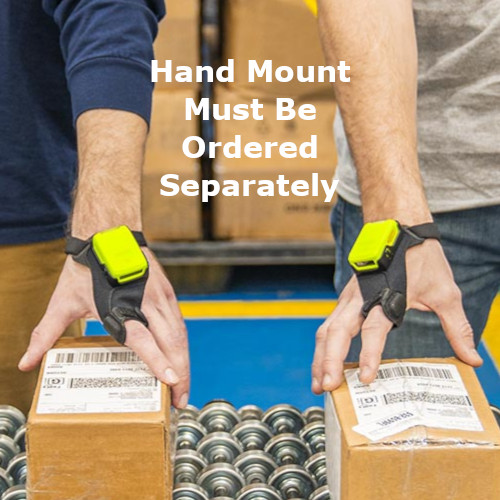

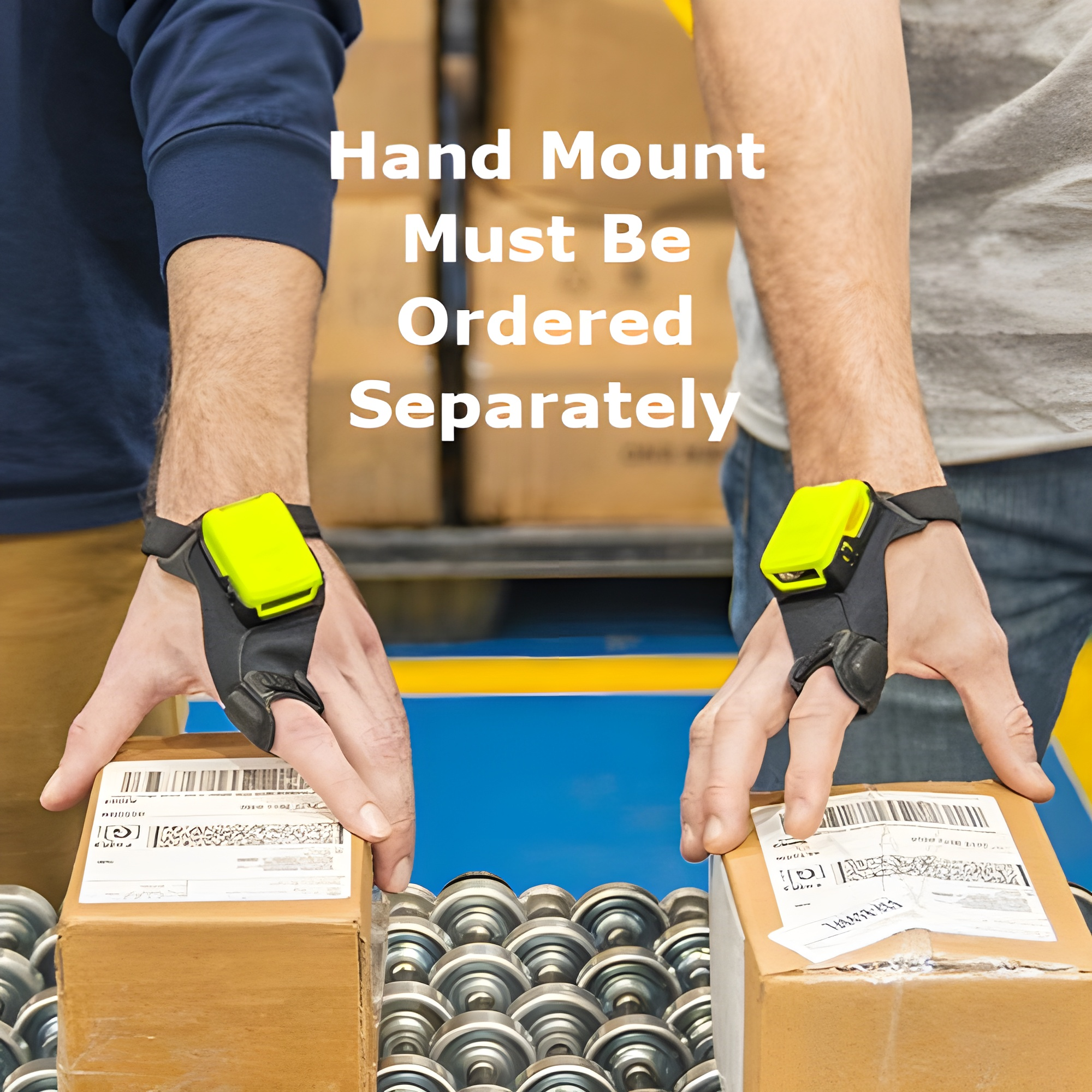

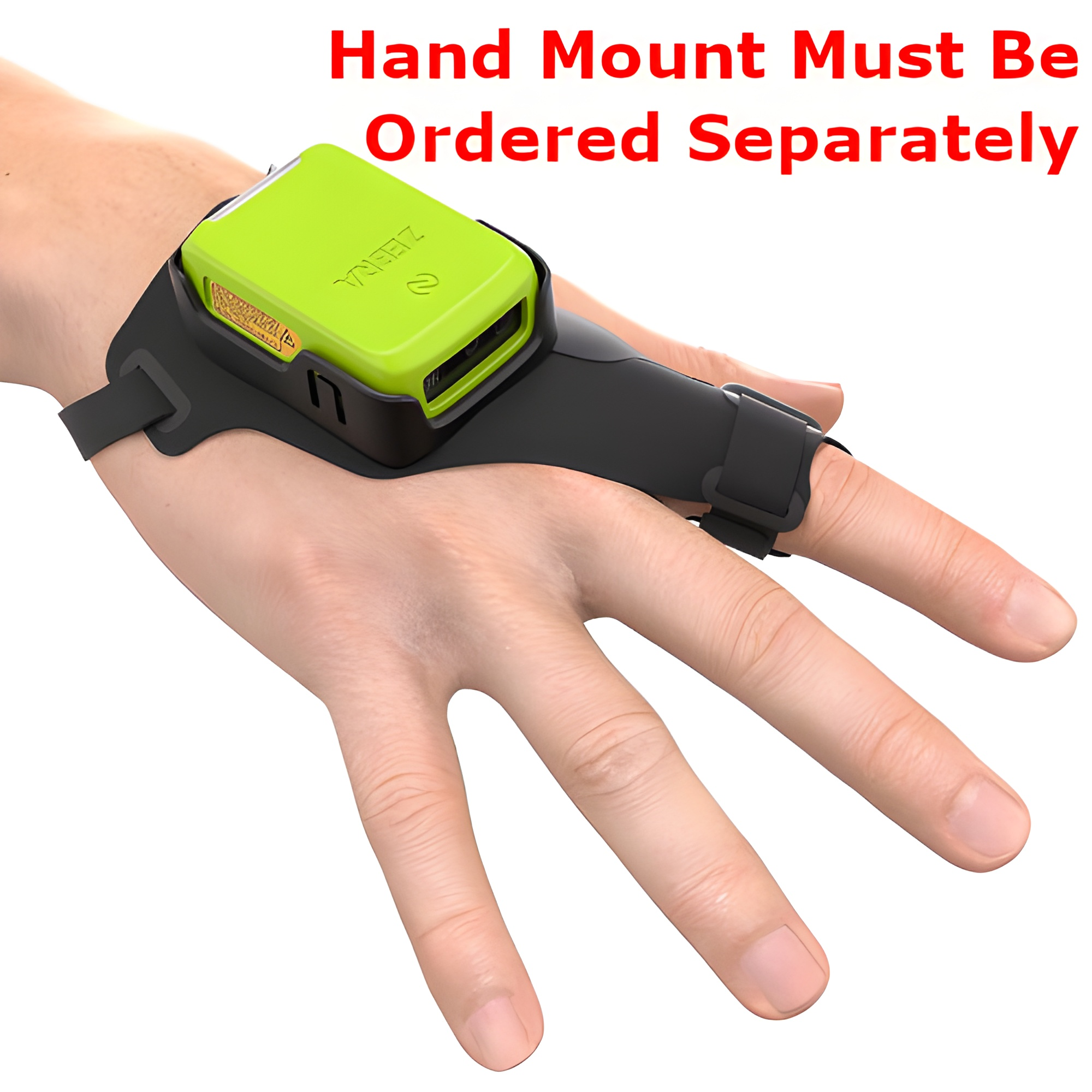

Low profile, highly ergonomic back of hand mount

• Soft materials for full shift comfort
• One size fits all, in left and right hand versions
• Integrated trigger button
• No strap in the palm, for improved grip while handling items and boxes

Multiple feedback modes

• Haptic vibration
• Programmable color LEDs
• Adjustable beeper

Simple charging accessory

• Two-slot cradle charges scanner in 2.5 hours
• USB-C power interface
