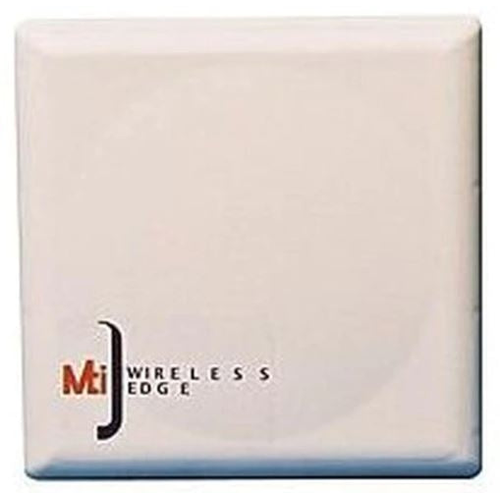

MTI MT-262011/TRH/A/K MTI Wireless Edge 902-928 MHz 8.5 dBic RFID Antenna
SKU: MT262011TRHAK
Weight: 3
lbs.
| Region | US |
| Environment | Indoor/Outdoor |
| Gain | 8.5 dBiC |
| Polarization | Right Circular |
| Read Range | Far Field |
| RFID Frequency | UHF |
Product Highlights
MTI MT-262011/TRH/A/K: MTI Wireless Edge 902-928 MHz 8.5 dBic RHCP (IP67) RP TNC Male Connector MNF# MT262011TRHAKFrequently Bought Together
- MTI MT-120018 Heavy Duty Antenna Mount ( SKU: MT-120018 ) $34.00
- MTI MT-120019 Heavy Duty Antenna Mounting Bracket ( SKU: MT-120019 ) $58.00
MTI Wireless Edge - Innovative Antennas Developer
MTI Wireless Edge develops and manufactures high quality antennas for 5G Backhaul, Commercial, Military and RFID markets. Focused on the future, MTI Wireless Edge antennas developer and manufacturer, is a part of the MTI Group, and is always at the forefront of innovation, developing groundbreaking technologies, frequencies, and innovative antennas.
MT-262011/TRLH/A/K antenna is an RHCP reader antenna operating at 902 - 928 MHz. The gain of the antenna is 8.5 dBic, and it comes with a TNC RP connector.
Specifications
| SKU | MT262011TRHAK |
|---|---|
| Manufacturer | MTI |
| Working Frequency | 902-928 MHz |
| Antenna Category | 900 MHz |
| Bands | Single |
| IP Rating | IP67 |
| Polarity | Right Hand Circular |
| Gain | 8.5 dBic |
| Connector 1 | RP TNC-Male |
| Height/Length (inches) | 10 |
| Height/Length (mm) | 260 |
| Operating Temp (celsius) | -55°C to +71°C |
| Thickness/Diameter (inches) | 1 |
| Thickness/Diameter (mm) | 25 |
| Width (inches) | 10 |
| Width (mm) | 260 |
| Weight (lbs) | 2.65 |
| Mount Style | Permanent |
| Product Condition | New |
$315.00
