MTI MT-262024/TRH/A/K 7x7 Inch IP-67 Circularly Polarized RFID Antenna
| Region | US |
| Environment | Indoor/Outdoor |
| Gain | 7.5 dBiC |
| Polarization | Right Circular |
| Read Range | Far Field |
| RFID Frequency | UHF |
Product Highlights
MTI MT-262024/TRH/A/K 7x7 inch IP-67 Circularly Polarized RFID Antenna - FCC MNF# MT262024TRHAK, MT-262024/TRH/A/KFrequently Bought Together

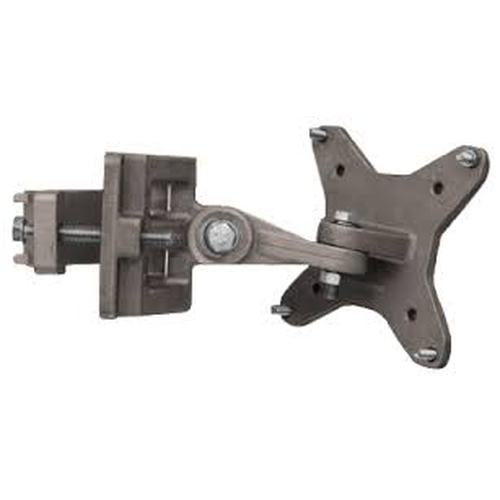

- MTI MT-120018 Heavy Duty Antenna Mount ( SKU: MT-120018 ) $34.00
- MTI MT-120019 Heavy Duty Antenna Mounting Bracket ( SKU: MT-120019 ) $58.00
MTI Wireless Edge - Innovative Antennas Developer
MTI Wireless Edge develops and manufactures high quality antennas for 5G Backhaul, Commercial, Military and RFID markets. Focused on the future, MTI Wireless Edge antennas developer and manufacturer, is a part of the MTI Group, and is always at the forefront of innovation, developing groundbreaking technologies, frequencies, and innovative antennas.
The MT-262024-TRH-A-K circularly polarized outdoor RFID Antenna from MTI measures in at only 7x7 inches. This unit operates at 7.5 dBic gain, covers 72 x 77 degrees beamwidth, and is an excellent choice when a smaller antenna is needed for passive UHF RFID applications in the FCC band of 902-928 Mhz. The antenna carries an IP67 rating, is well suited for outdoor installations such as parking gates, overhead race timing trusses, and distribution center yards. It comes with a fixed RPTNC-Female Connector on the back plate, and has 4 threaded mounting studs. Equivalent to Intermec 1309.17.0089 and 1309.17.0089A
Specifications
| SKU | MT262024TRHAK |
|---|---|
| Manufacturer Part Number | MT-262024/TRH/A/K |
| Manufacturer | MTI |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | 67 |
| Polarity | Circular |
| Gain | 7.5 |
| Horizontal/Azimuth Beamwidth | 77 |
| Vertical/Elevation Beamwidth | 72 |
| Connector Type | Connector - Rear |
| Connector 1 | RP TNC-Female |
| Height/Length (inches) | 7 |
| Height/Length (mm) | 190 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 1.2 |
| Thickness/Diameter (mm) | 30 |
| Width (inches) | 7 |
| Width (mm) | 190 |
| Weight (lbs) | 1.5 |
| Weight (grams) | 800 |
| Material | Plastic |
| Mount Style | Mast or Wall |
| Product Condition | New |
