Zebra FREEZEmarker Freeze Indicators
Gauge Exposure to Freeze Events With Easy-to-Read Indicators

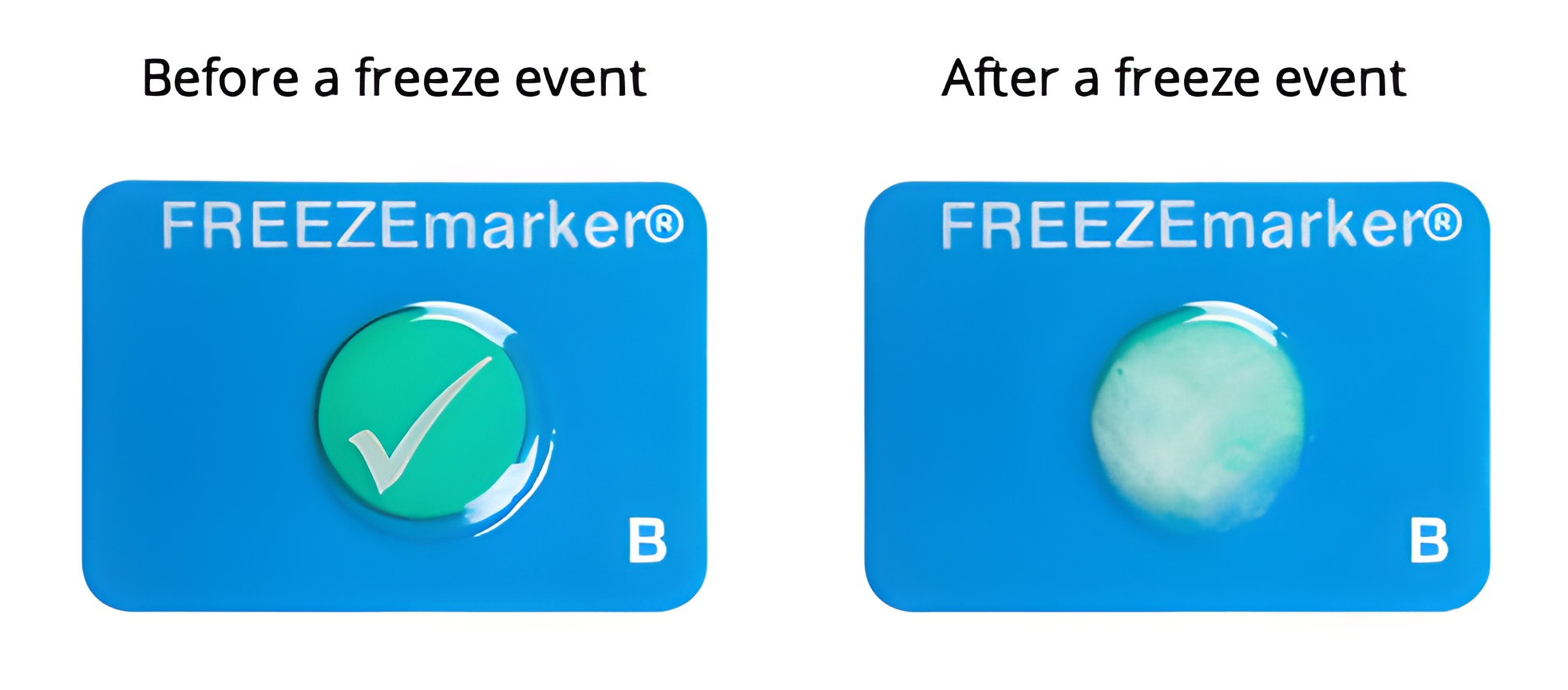

FREEZEmarker®, manufactured by Temptime®, is a single-use indicator that monitors exposure to freeze events. It provides an easy-to-read, irreversible visual signal when a freeze event at or below the response temperature occurs. FREEZEmarkers display a clearly visible green circle and white checkmark to indicate when temperatures are above the response temperature. When exposed to temperatures at or below the response temperature, the green circle turns partially or completely white, obscuring the white checkmark, to warn that the temperature limit has been exceeded and the endpoint reached.
Ensure Customer Confidence
FREEZEmarker from Zebra is an easy-to-understand, visual, freeze event indicator. It helps identify when freeze sensitive items have been exposed to a potentially damaging temperature event.
Save Costs Associated With Reships
FREEZEmarker and TransTracker® work together to help you save costs associated with reships. Protect your margins from re-shipments of products where there is uncertainty if the product has been exposed to damaging freeze events during cold chain transport or storage.
Customize Your Solution
Zebra freeze indicators come in several different response temperatures allowing a broad range of freeze events to be identified. They can also be branded and placed inside multiple unit secondary packages or shipping boxes with consumer information included.
FREEZEmarker Freeze Indicator
FREEZEmarker is a self-adhesive, single-use freeze indicator that can be applied directly to product surfaces or packaging. FREEZEmarkers provide a visual warning within 30 minutes of a freeze event.
FREEZEmarker can be affixed to an individual unit to monitor the product from manufacture to use, or later in the cold chain to monitor the product for a portion of its distribution. Many medical products can be damaged and lose strength if they are frozen. Such excursions can go unnoticed during shipping and storage. Leading medical product manufacturers and distributors use FREEZEmarker.
- Identifies when a potentially damaging freeze event has been experienced for a short period of time.
- Easy-to-read, irreversible visual color change.
- Used to identify and prevent the administration or use of products that can be damaged or lose strength after a freeze event.
Full
Specifications
TransTracker With FREEZEmarker Indicator
Shipment Temperature Monitors
TransTracker with FREEZEmarker indicator can be placed in the packaging to monitor freeze events during shipping. The card includes an interpretation key for reading the indicator and can be customized with branding and consumer information specific to your use case.
- Identifies when a potentially damaging freeze event has been experienced for a short period of time.
- Easy-to-read, irreversible visual color change.
- Used to identify and prevent the administration or use of products that can be damaged or lose strength after a freeze event.
|
Response Temperature |
Response Time |
Accuracy | Size | |
|---|---|---|---|---|
| C | 0oC | 30 minutes | +/- 1oC | 54 x 84 mm |
| C | -1oC | 30 minutes | +/- 1oC | 54 x 84 mm |
| C | -6oC | 30 minutes | +/- 2oC | 54 x 84 mm |
Monitor Temperature-Sensitive Products
LIMITmarker® Threshold Heat Indicators
LIMITmarker irreversible visual temperature indicators can be applied directly to heat-sensitive products; available with delayed (2 hours), quick (15 minutes) or immediate (seconds) indication. Many medical products can be damaged and lose strength when exposed to temperatures above a certain threshold.
When exposed to temperatures at or above the response temperature, the heat indicators change color within a specified response time to give a visual warning.
LIMITmarker® Reversible 18°C Indicators
LIMITmarker Reversible 18°C indicators provide a visual cue when products that require refrigeration to maintain their efficacy reach room temperature. The indicator is solid blue when cold (at or below 8°C), then changes color and reveals "OK" when it approaches room temperature (18°C, plus or minus 2°).
The indicators are 16 mm x 10 mm self-adhesive labels, easily applied to the primary packaging of products, where they can be viewed and intuitively understood by users.
TransTracker® Shipment Indicators
Monitor temperature-sensitive products across cold chain logistics from manufacturer to distributor, and hospital, clinic or pharmacy to the patient or end user. Provides accurate temperature monitoring with visual signals inside multiple unit packages or shipping boxes.
Helps you comply with increasing regulations, limit the waste of products incorrectly suspected of heat or freeze damage, lower the cost of reshipping medications or perishable food, and ensure user confidence and satisfaction.
Why use Zebra's Ready to Use Indicators?
Zebra's ready to use indicators give customers critical information about their heat and freeze sensitive products. They provide peace of mind and confidence that their products have not had a temperature excursion using an objective, easy to understand and clearly visible monitoring device.
