Zebra TransTracker® Shipment Indicators
Utilize Visual Indicators for Temperature Sensitive Products During Shipping and Storage
Reliable and accurate indicators are critical for keeping track of temperature exposures to your temperature-sensitive products during cold chain shipping and storage.
Providing visual warnings when temperature limits have been exceeded during shipping and storage, Zebra TransTracker® temperature indicators manufactured by Temptime®, are single-use devices that monitor heat, freeze or dual heat-freeze exposures of temperature-sensitive products.
Improve Customer Satisfaction
TransTracker temperature indicators give customers the peace-of-mind and confidence in the integrity of products using an objective temperature monitoring device.
Reduce Reships and Associated Costs
Consistently high-performing and visually easy-to-read, protect your supply chain from the increased costs of having to reship products that experienced uncertain temperatures during cold chain transport or storage.
Customize Your Solution
TransTracker indicators can be customized with branding and consumer information specific to your use case. Work with our expert staff to provide the perfect solution for your supply chain.

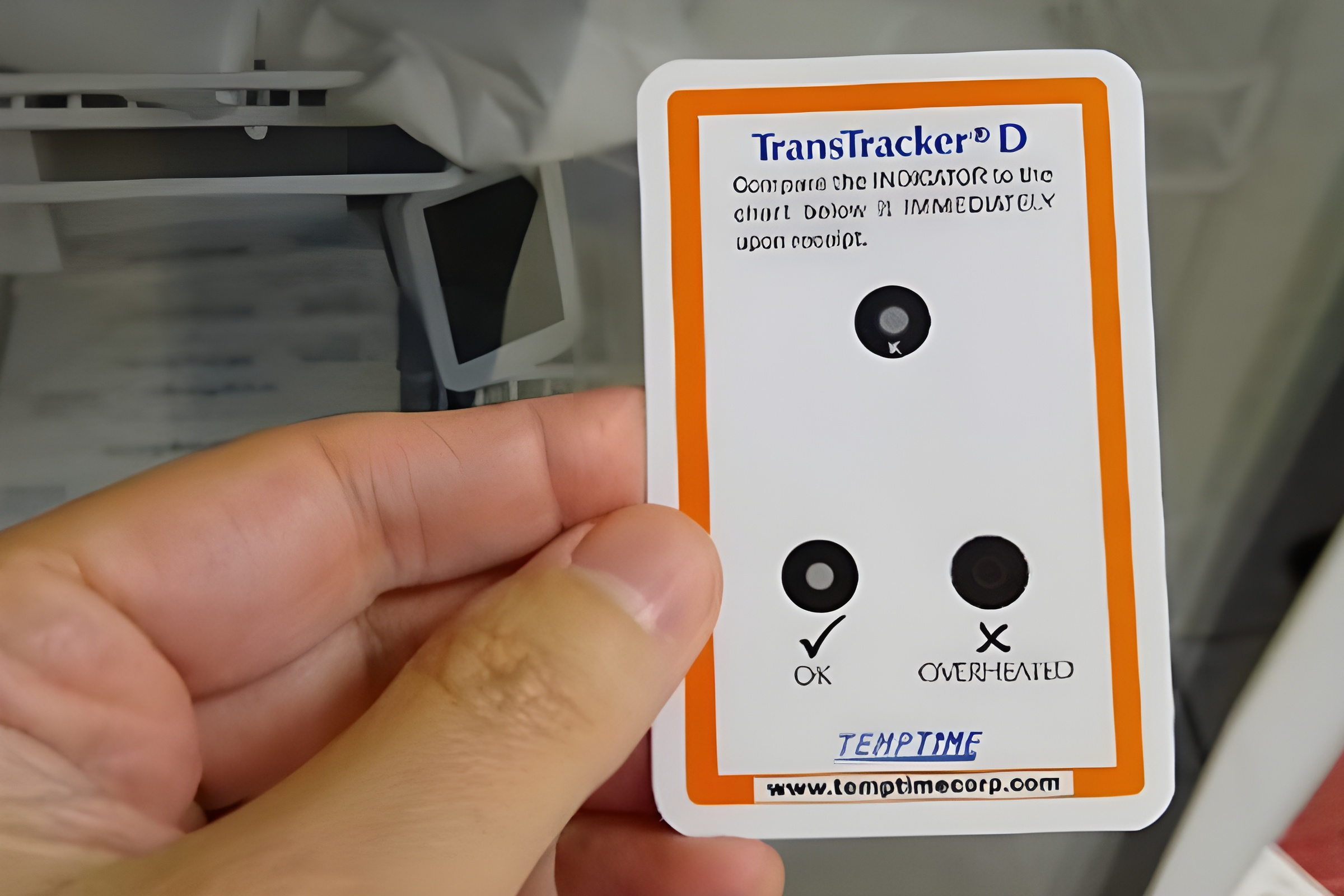

TransTracker® Heat Event Shipment Indicators
Indicate Immediate, Quick or Delayed Heat Exposure
TransTracker with LIMITmarker heat-sensing indicators are placed in packaging to monitor heat exposure during shipping. They are available with immediate indication (within 15 seconds), quick indication (up to 15 minutes) and delayed indication (up to 2 hours).

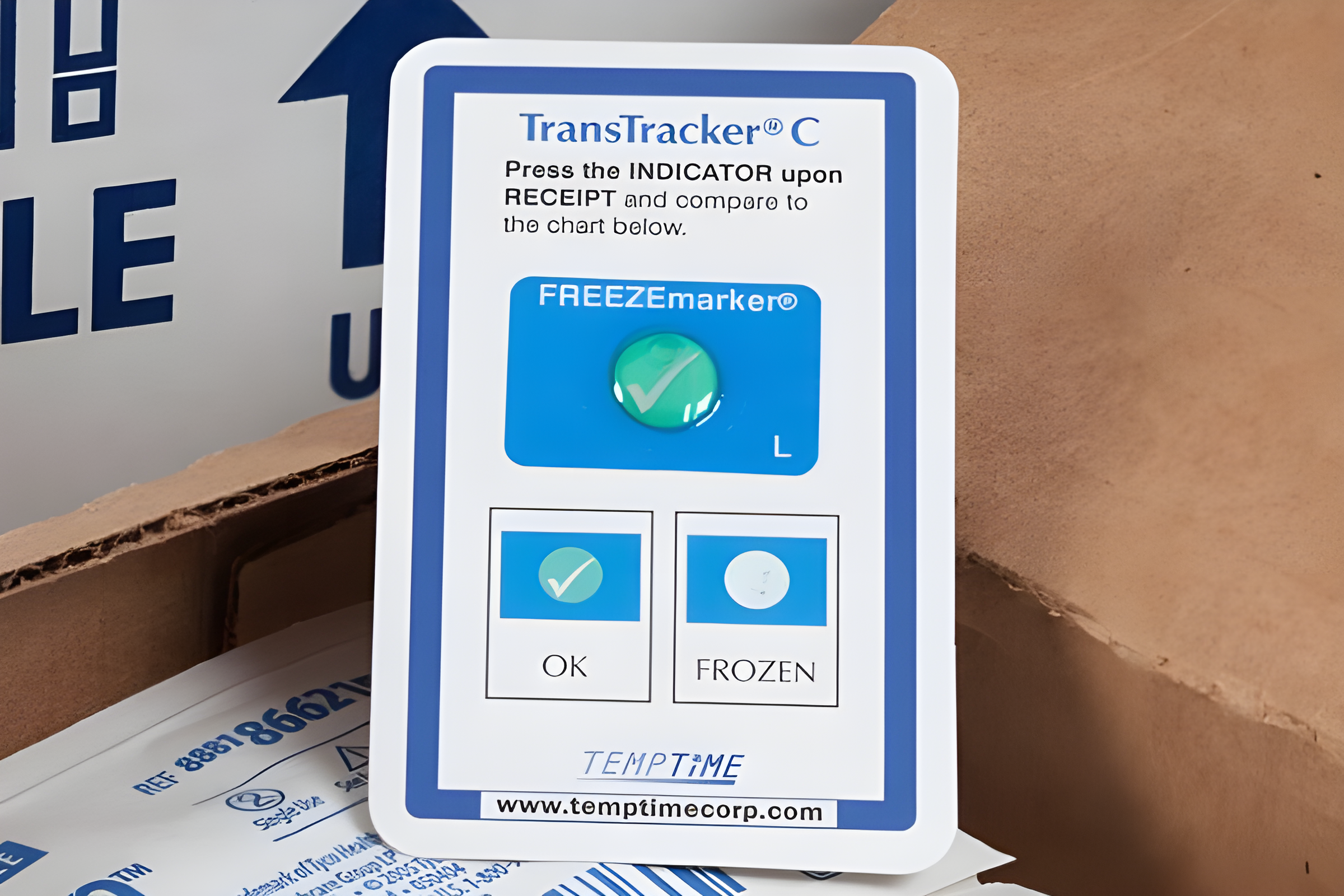

TransTracker Freeze Event Shipment Indicators
Indicate Freeze Events
TransTracker with FREEZEmarker® indicators are placed in packaging to monitor freeze events during shipping. FREEZEmarkers display a clearly visible green circle and white checkmark to indicate that temperatures have remained above the response temperature.
- Identifies when a potentially damaging freeze event has been experienced for a short period of time.
- Easy-to-read, irreversible visual color change.
- Used to identify and prevent the administration or use of products that can be damaged or lose strength after a freeze event.
|
Response Temperature |
Response Time |
Accuracy | Size | |
|---|---|---|---|---|
| C | 0oC | 30 minutes | +/- 1oC | 54 x 84 mm |
| C | -1oC | 30 minutes | +/- 1oC | 54 x 84 mm |
| C | -6oC | 30 minutes | +/- 2oC | 54 x 84 mm |
Full
Specifications

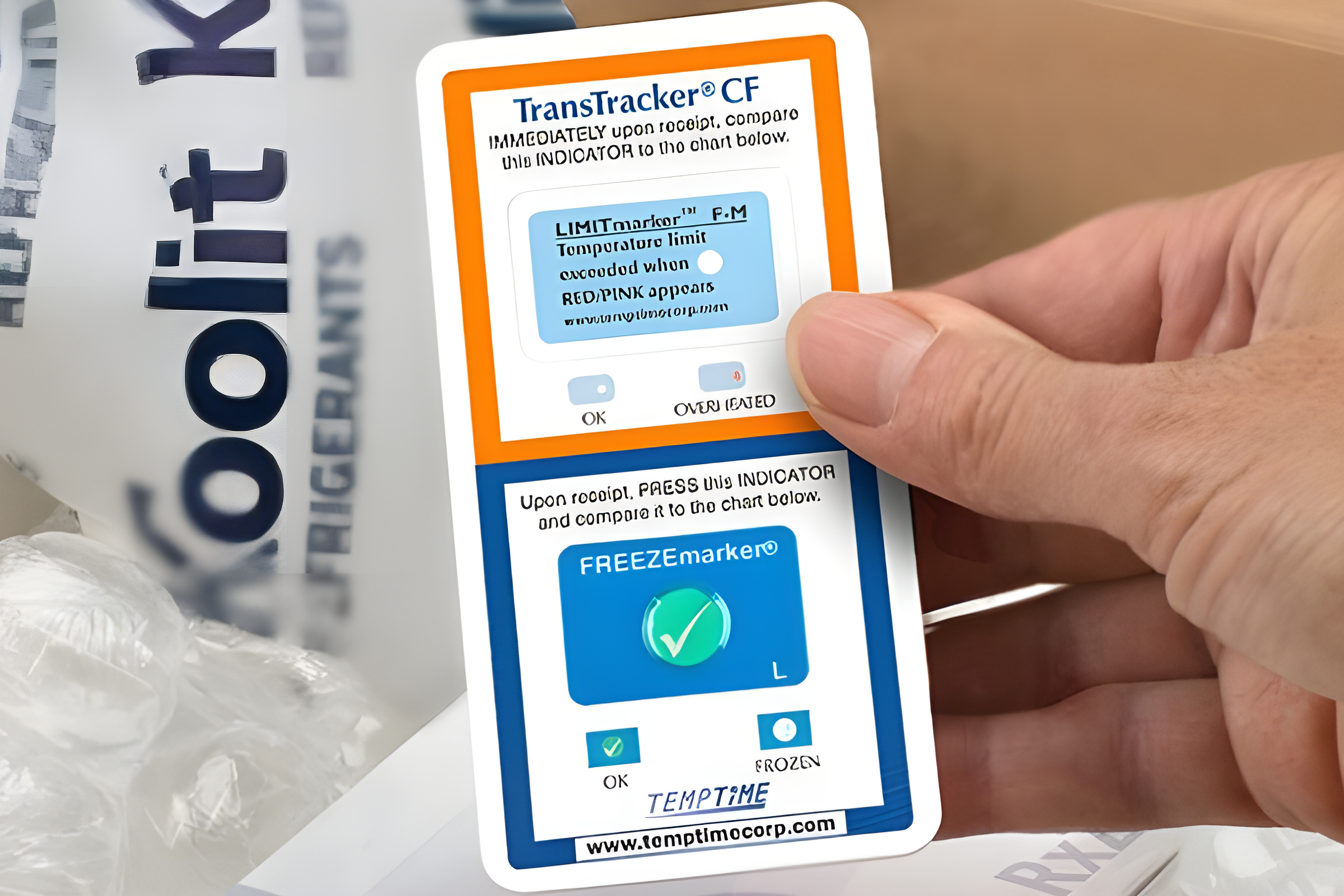

TransTracker® Dual Temperature Shipment Indicators
Combined Heat and Freeze Indicators
TransTracker CD & CF dual indicators include a LIMITmarker® heat and FREEZEmarker freeze indicator to identify and prevent the administration or use of products that could be damaged by a high heat excusion or freeze event.
Monitor Temperature-Sensitive Products
LIMITmarker® Threshold Heat Indicators
LIMITmarker irreversible visual temperature indicators can be applied directly to heat-sensitive products; available with delayed (2 hours), quick (15 minutes) or immediate (seconds) indication. Many medical products can be damaged and lose strength when exposed to temperatures above a certain threshold.
When exposed to temperatures at or above the response temperature, the heat indicators change color within a specified response time to give a visual warning.
LIMITmarker® Reversible 18°C Indicators
LIMITmarker Reversible 18°C indicators provide a visual cue when products that require refrigeration to maintain their efficacy reach room temperature. The indicator is solid blue when cold (at or below 8°C), then changes color and reveals "OK" when it approaches room temperature (18°C, plus or minus 2°).
The indicators are 16 mm x 10 mm self-adhesive labels, easily applied to the primary packaging of products, where they can be viewed and intuitively understood by users.
FREEZEmarker® Freeze Indicators
FREEZEmarker irreversible visual temperature indicators monitor exposure to freeze events. When exposed to a freeze event at or below the response temperature, the freeze indicators turn partially or completely white, obscuring the white checkmark, to warn that the temperature limit has been exceeded and the endpoint reached.
Many medical products can be damaged and lose strength if they are frozen. Such excursions can go unnoticed during shipping and storage.
Why use Zebra's Ready to Use Indicators?
Zebra's ready to use indicators give customers critical information about their heat and freeze sensitive products. They provide peace of mind and confidence that their products have not had a temperature excursion using an objective, easy to understand and clearly visible monitoring device.
